Description

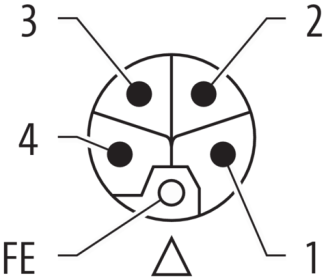

xThis M12 Power male connector is designed with a straight 5-pole L-coding. It comes with a 10m PUR cable that offers resistance against chemicals and oils. The connector operates at a maximum of 63V and 12A, providing IP65 and IP67 protection.
Specifications
x| IP Rating / Detailed | IP65 |
| Tariff | 85444290 |
| GTIN | 4048880000000.0 |
| ETIM | EC001855 |
| Temperature: Operating Min | -25.0°C |
| Temperature: Operating Max | 85.0°C |
| Stripping Length (mm) | 100.0mm |
| Thread | M12 |
| Tightening Torque | 0 |
| Nominal Voltage | 1000.0 |
| Mounting Type | inserted |
| Current load capacity | to |
| Current Rating / Rated Current | 12.0 |
| Packaging size / unit | 1 |
| Material: Housing / Grip | contact |
| Material: Jacket / Cover Nut | PUR |
| Material: Sensing Surface / Contacts | gold |
| Material: Wire Insulation | PP |
| Cable Type | 3.0 |
| Communication | M12P |
| Stranding | 1 |
| Wire arrangement | gray |
| Bending radius (fixed) | 5.0 |
| Bending radius (dynamic) | 10.0 |
| Voltage Frequency Range | withstand |
| Operating Voltage Max | 63.0 |
