Murr M12 Power female 0°, L-code/ male 0°, 7/8", 0.6m

Product Overview

Power adapter cable (SKU: 7000-P4541-P040060) designed for connecting 7/8" power devices to M12 L-coded power systems in industrial automation applications. This short 0.6-meter cable features 7/8" male straight connector to M12 Power female L-coded connector with 5×1.5mm² conductors for reliable high-current interface connections.

Key Features

• 7/8" male straight to M12 Power female straight (0°) L-coded connectors
• 0.6-meter black PUR cable for compact interface applications
• 5 × 1.5mm² high-current conductors with cable sleeves included
• UL/CSA certified with IP67/IP68/IP69K protection
• Drag chain compatible design
• Gold-plated contacts for superior conductivity

Technical Specifications

• Connector 1: 7/8" male straight (0°), 5-pole

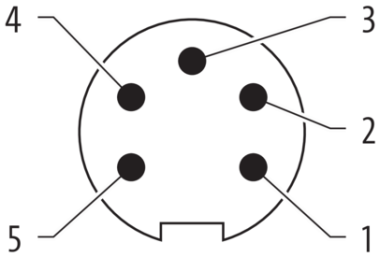

• Connector 2: M12 Power female straight (0°) L-coded, 5-pole
• Cable Length: 0.6 meters
• Wire Configuration: 5 × 1.5mm² stranded copper (Class 6)
• Operating Voltage: Up to 1000V AC, 63V DC max
• Current Rating: 12A max per contact
• Operating Temperature: -30°C to +85°C

Applications

• Interface between 7/8" and M12 L-coded power systems
• Power adapter for mixed connector installations
• Equipment interfacing requiring connector conversion
• Compact power connections in space-constrained applications

Compliance & Standards

• IEC 61076-2-111 standard compliant L-coding
• UL/CSA certified construction
• Drag chain compatible design
• RoHS compliant materials

Download existing graphical data for this product:

Product Datasheet
