Murr M12 Power cable, 5-Pole, L-coded, female 0°, 35m

Product Overview

M12 Power female connector with open-ended cable (SKU: 7000-P4221-P043500) designed for extended high-current power applications in industrial automation systems. This L-coded 5-pole straight connector features 35 meters of robust PUR cable with 5×1.5mm² conductors for reliable power distribution connections in large-scale industrial environments.

Key Features

• M12 Power female straight (0°) L-coded connector with SW17 hex
• 35-meter black PUR cable with open-ended wires for field termination
• 5 × 1.5mm² high-current conductors with cable sleeves included
• UL/CSA certified with IP67/IP68/IP69K protection
• Drag chain compatible with 5 million cycle rating
• Gold-plated contacts for superior conductivity

Technical Specifications

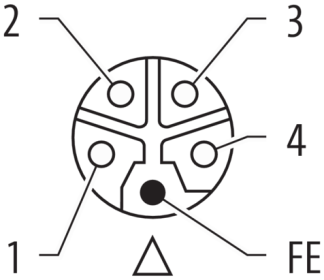

• Connector: M12 Power female straight (0°) L-coded, 5-pole, SW17
• Cable Length: 35 meters
• Wire Configuration: 5 × 1.5mm² stranded copper (Class 6)
• Cable Type: PUR jacket, black, 8.2mm outer diameter
• Operating Voltage: Up to 1000V AC, 63V DC max

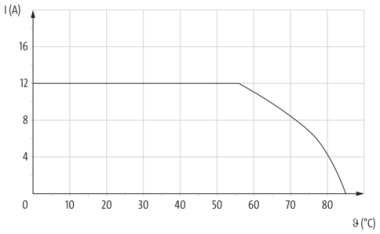

• Current Rating: 12A max per contact
• Operating Temperature: -30°C to +85°C

Applications

• Extended power connections for large automation systems
• Long-distance motor and drive power distribution
• Large facility power distribution with significant cable runs
• Custom power installations requiring 35-meter cable lengths

Compliance & Standards

• IEC 61076-2-111 standard compliant L-coding
• UL/CSA certified construction
• Drag chain rated for 5 million cycles
• RoHS compliant materials

Download existing graphical data for this product:

Product Datasheet
