Murr M12 male on top A-code / MSUD double valve

Product Overview

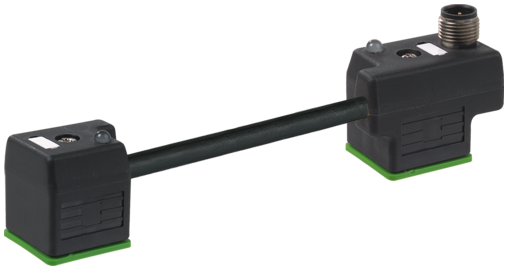

This M12 to MSUD double valve plug assembly (SKU: 7000-41501-6360000) features a 4-pole male M12 top-entry connector with integrated cable connecting to dual MSUD valve plugs Form A (18mm) for efficient control of two solenoid valves from a single M12 connection. The assembly operates at 24V AC/DC and includes integrated LED status indication and suppression circuitry with a robust PUR cable designed for industrial automation applications.

Connector Configuration:

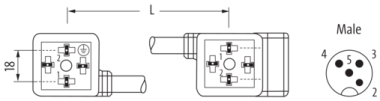

• Input: M12, 4-pole, top entry, A-coded (male)

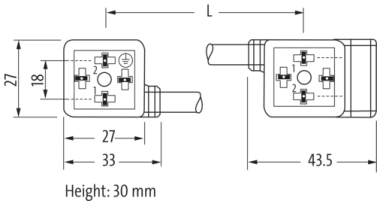

• Output: 2x MSUD valve plugs Form A, 18mm diameter
• Voltage Rating: 24V AC/DC
• Protection: IP67 (M12 connector when mated)
• Housing: Impact-resistant plastic
• LED & Suppression: Integrated status indication and voltage suppression

Double Valve Assembly Design:

• Configuration: Single M12 input to dual MSUD valve outputs
• Topology: One-to-two valve control from single connection point
• Signal distribution: Parallel valve control with individual switching
• Installation: Top-entry M12 connection for dual valve applications
• Efficiency: Reduced wiring complexity for dual valve systems

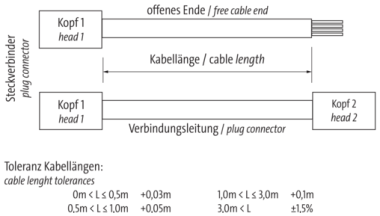

Cable Specifications:

• Material: PUR (Polyurethane) jacket - black
• Conductor: 3 x 0.75 mm² stranded copper wire
• Certifications: UL/CSA approved
• Drag chain certified: Suitable for dynamic applications
• Temperature range: -40°C to +80°C (static), -25°C to +80°C (dynamic)
• Properties: Abrasion resistant, hydrolysis and microbial resistant

Electrical Characteristics:

• Operating voltage: 24V AC/DC
• Current rating: Suitable for dual solenoid valve applications
• LED function: Integrated status indication
• Suppression: Built-in voltage suppression circuitry
• Wire configuration: 3-core cable for dual valve control

Environmental Performance:

• Protection rating: IP67 (M12 connector when mated)
• Chemical resistance: Good resistance to chemicals and oils
• Cable properties: Hydrolysis and microbial resistant
• Drag chain compatibility: Certified for dynamic applications
• Individual testing recommended for aggressive media

Material & Construction:

• M12 housing: Impact-resistant plastic construction
• Cable jacket: PUR material with superior durability
• Valve interfaces: MSUD Form A (18mm) standard
• Connection type: Top-entry M12 for optimal access
• Material compliance: RoHS compliant, UL/CSA certified

Applications

Designed for industrial automation applications requiring control of two solenoid valves from a single M12 connection point. Ideal for pneumatic and hydraulic systems where dual valve control is needed, such as actuator positioning, flow control, and process automation. Perfect for manufacturing equipment, packaging machinery, and fluid control systems where space efficiency and wiring simplification are priorities.
