Product Overview

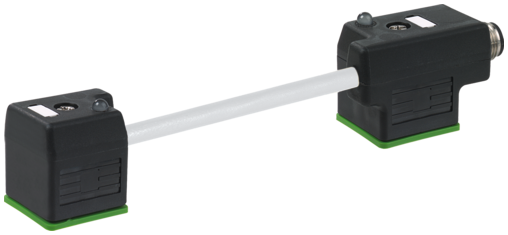

This M12 to MSUD double valve plug assembly (SKU: 7000-41561-2260000) features a male M12 rear-entry connector with integrated cable connecting to dual MSUD valve plugs Form A (18mm) for efficient control of two solenoid valves from a single M12 connection. The assembly operates at 24V AC ±20% / DC ±25% and includes integrated LED status indication with a robust gray PUR cable designed for industrial automation applications.
Connector Configuration:
Rear-Entry Double Valve Design:
Cable Specifications:
Electrical Characteristics:
Environmental Performance:
Material & Construction:
Applications
Designed for industrial automation applications requiring control of two solenoid valves from a single rear-entry M12 connection point. Ideal for pneumatic and hydraulic systems where dual valve control with improved cable routing is needed, such as actuator positioning, flow control, and process automation. Perfect for manufacturing equipment, packaging machinery, and fluid control systems where rear cable entry provides better installation flexibility and space optimization.
Download existing graphical data for this product:
IP Rating / Detailed | IP67 |
Tariff | 85444290 |
GTIN | 4048880000000.0 |
ETIM | EC001855 |
Temperature: Operating Min | -25.0°C |
Temperature: Operating Max | 85.0°C |
Thread | M3 |
Tightening Torque | 0 |
Nominal Voltage | 300.0 |
Mounting Type | inserted |
Current load capacity | to |
Current Rating / Rated Current | 4.0 |
Packaging size / unit | 1 |
Material: Housing / Grip | data |
Material: Jacket / Cover Nut | PUR |
Material: Wire Insulation | PVC |
Cable Type | 2.0 |
Stranding | 1 |
Wire arrangement | black |
Bending radius (fixed) | 10.0 |
Bending radius (dynamic) | 15.0 |
Operating Voltage Min | 18.0 |
Voltage Frequency Range | withstand |
Operating Voltage Max | 30.0 |
