Murr M12 male, bus terminating plug, A-coded, 6-pole

Product Overview

The Murrelektronik M12 male bus terminating plug features integrated terminating resistor technology specifically designed for CUBE67 I/O system applications. This A-coded 6-pole terminating plug provides essential network termination to ensure proper signal integrity and reliable communication in CUBE67 automation systems, eliminating signal reflections and maintaining network stability at bus endpoints in industrial automation environments.

Key Features

• M12 male connector with A-coding and 6-pole configuration
• Specifically designed for CUBE67 I/O system applications
• Integrated terminating resistor for proper network termination
• Ready-to-use plug eliminates external resistor requirements
• Compact design for space-efficient installations
• Robust plastic housing with industrial-grade construction
• Easy installation with standard M12 threading
• Professional circuit design for optimal CUBE67 network performance
• Chemical and oil resistant housing materials
• Self-securing screw thread design
• IP67 protection rating when properly installed

Technical Specifications

• Article Number: 7000-15041-0000000
• Connector Type: M12 male, A-coded

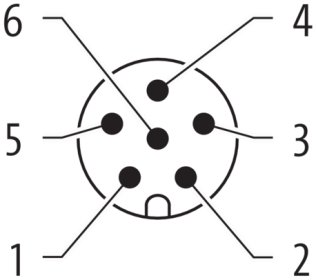

• Pole Configuration: 6-pole
• Application: CUBE67 I/O system bus termination
• Terminating Resistor: Integrated internal resistor
• Operating Voltage: Maximum 30V DC
• Operating Current: Maximum 4A per contact
• Operating Temperature: -25°C to +85°C
• Locking Mechanism: Screw thread (M12×1mm) with recommended torque 0.6 Nm, self-securing
• Protection Rating: IP67 when inserted and tightened (EN 60529)
• Housing Material: High-resistance plastic with excellent chemical resistance

Applications

• CUBE67 I/O system network termination at bus endpoints
• Industrial automation CUBE67 system termination
• Process control CUBE67 network signal integrity maintenance
• Manufacturing automation CUBE67 system installations
• Control system CUBE67 bus network proper termination
• Machine automation CUBE67 network endpoint termination
• Fieldbus system signal reflection elimination in CUBE67 applications
• CUBE67 I/O module network termination and stability

Standards and Compliance

• System Compatibility: CUBE67 I/O system integration
• Quality Standards: German engineering and manufacturing
• Performance Standards: Designed for CUBE67 industrial automation systems
• Environmental Standards: Chemical and oil resistance testing
• Protection Standards: IP67 rated for harsh industrial environments

Benefits

• Integrated terminating resistor eliminates need for external components
• A-coded 6-pole design ensures proper CUBE67 system compatibility
• Ready-to-use solution reduces installation time and complexity
• Professional circuit design ensures optimal CUBE67 network performance
• Compact form factor saves installation space
• Self-securing screw thread design prevents loosening
• Robust construction withstands industrial environments
• Easy installation with standard M12 connection and 0.6 Nm torque specification
• Prevents signal reflections that can cause CUBE67 communication errors
• Essential component for proper CUBE67 network functionality
• Cost-effective solution for CUBE67 network termination requirements
• Excellent resistance against chemicals, oils, and environmental contaminants
• Wide operating temperature range from -25°C to +85°C
• Reliable long-term performance in demanding CUBE67 applications

Downloads:

• Product Data Sheet
