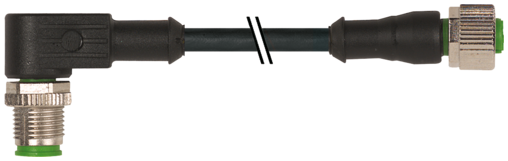

Murr M12 male 90° / M12 female 0°, 4-pole, black, 5m

Product Overview

This M12 connection cable features a male 90° angled connector and female straight (0°) connector, both with A-coding for reliable signal transmission in industrial automation applications. The 5-meter cable with PUR jacket provides robust connectivity for sensors, actuators, and automation equipment.

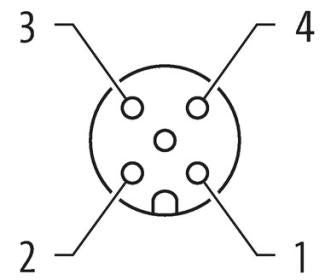

Connector Configuration:

• Male connector: M12, 4-pole, 90° angled, A-coded
• Female connector: M12, 4-pole, 0° straight, A-coded
• Thread: M12 x 1mm, self-securing
• Tightening torque: 0.6 Nm
• Protection degree: IP66K, IP67
• Width across flats: SW13

Cable Properties:

• Material: PUR jacket with PP wire insulation
• Cross-section: 4 x 0.34 mm²
• Color: Black

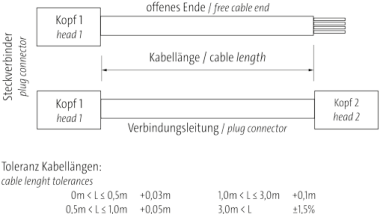

• Length: 5 meters
• Outer diameter: 4.5 mm (±5% tolerance)
• Weight: 36.3 g/m

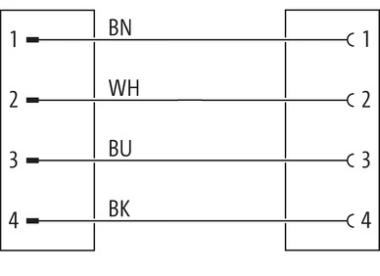

• Wire arrangement: Brown, black, blue, white

Electrical Characteristics:

• Operating voltage: 250V AC/DC max.
• Current rating: 4A max. per contact
• Nominal voltage: 300V AC max.
• AC withstand voltage: 2.5 kV @ 60s (wire-wire and wire-jacket)
• Electrical resistance: 57 Ω/km @ 20°C
• Conductor: Stranded copper wire (class 6), 42 strands x 0.1mm diameter

Environmental Performance:

• Operating temperature (static): -40°C to +80°C/+90°C
• Operating temperature (dynamic): -25°C to +80°C/+90°C
• Bending radius (fixed): 5 x outer diameter
• Bending radius (dynamic): 10 x outer diameter
• UV resistance: DIN EN ISO 4892-2 A
• Chemical, gasoline, and oil resistance: Good (application testing recommended)

Dynamic Applications:

• Drag chain certified: 10 million bending cycles @ 25°C
• Travel distance: 10m horizontal @ 25°C
• Travel speed: 3 m/s @ 25°C
• Torsion cycles: 2 million cycles at ±180°/m
• Torsion speed: 35 cycles/min

Material & Construction:

• Connector housing: Zinc die-cast, nickel-plated
• Shore hardness (jacket): 90 ±5 Shore A
• Shore hardness (insulation): 70 ±5 Shore D
• Material compliance: Lead-free, cadmium-free, CFC-free, halogen-free, silicone-free

Standards & Certifications:

• Product standard: DIN EN 61076-2-101 (M12)
• UL/CSA certified (cURus)
• Flame resistance: UL 1581 § 1090, IEC 60332-2-2, UL 1581 § 1100 FT2
• Material group: IEC 60664-1, category I
• Pollution degree: 3

Applications Designed for industrial automation environments requiring space-efficient 90° connections. Ideal for dynamic applications including robotics, conveyor systems, and automated machinery where cables experience repeated movement and bending.
