Murr M12, male 90°/ female 90°, A-coded, 8-pole, grey, 5m

Product Overview

Industrial shielded signal extension cable (SKU: 7000-48071-2910500) featuring M12 male 90-degree connector to M12 female 90-degree connector with A-coding. This high-quality 8-pole shielded cable assembly is designed for sensor and actuator signal transmission in space-constrained industrial automation applications where EMI protection is critical.

Key Features

• M12 male connector (90° angled) to M12 female connector (90° angled)
• A-coded for sensor and actuator signal applications
• 8-pole configuration for multi-signal transmission
• Shielded construction for superior EMI/EMC protection
• PUR cable jacket for superior durability and chemical resistance
• UL/CSA certified for North American installations
• IP67 protection rating when connectors are mated
• Gray cable color for signal identification
• Drag chain compatible for dynamic applications

Technical Specifications

• Connector Type: M12 x 1 threaded, 90-degree angled (both ends)

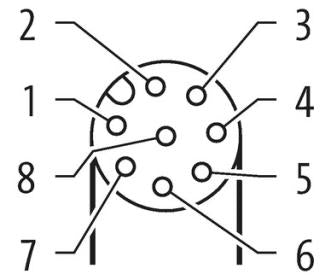

• Coding: A-coded (8-pole signal)
• Cable Length: 5.0 meters
• Wire Configuration: 8 x 0.25mm² shielded multi-conductor cable
• Wire Gauge: 0.25mm² stranded copper conductors
• Cable Type: PUR (Polyurethane) jacketed with drag chain capability
• Shielding: Foil and braid shield for EMI/EMC protection
• Operating Voltage: 30V AC/DC maximum (30V AC/DC UL listed)
• Rated Surge Voltage: 0.8 kV
• Operating Current: 2A maximum per contact
• Operating Temperature: -25°C to +85°C (cable dependent)
• Protection Rating: IP66K/IP67 when properly mated
• Bend Radius (Moving): 10 x outer diameter

Cable Construction

• Wire Count: 8 conductors
• Wire Colors: Brown, White, Blue, Black, Gray, Pink, Violet, Orange
• Wire Insulation: PP (Polypropylene)
• Shielding: Foil and braid construction
• Outer Diameter: 6.0mm ±5%
• Jacket Material: PUR with UL/CSA approval
• C-Track Rating: 5 million cycles
• Connector Material: Zinc die-cast, nickel-plated
• Locking: Screw thread (M12×1 mm) recommended torque 0.6 Nm

Applications Ideal for space-saving shielded multi-signal connections in industrial environments:

• Multi-channel sensor signal transmission in confined spaces
• Industrial automation control systems requiring EMI protection
• Machine control and monitoring applications with space constraints
• Process control signal distribution in electrically noisy environments
• Factory automation signal networks with 90-degree space requirements
• Robotic system signal connectivity with drag chain movement

Compliance & Standards

• UL Listed - Shielded signal cable assemblies for industrial control
• CSA certified for Canadian installations
• cURus approved
• CE conformity marking
• RoHS compliant
• IEC 60664-1 Category I material group
• DIN EN 61076-2-101 (M12) standards compliance
• UL 1581 VW1 / CSA FT1 flame retardant
• IEC 60332-1, IEC 60332-2-2 standards

Download existing graphical data for this product:

Product Datasheet
