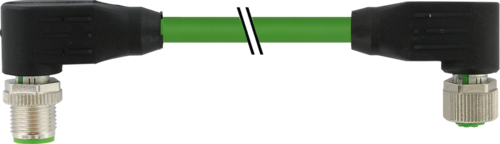

Murr M12, male 90°/ female 90°, A-code, 6-pole, green, 1m

Product Overview

Cube67 hybrid connection cable (SKU: 7000-46061-8020100) featuring M12 male 90-degree connector to M12 female 90-degree connector with A-coding. This high-quality shielded hybrid cable assembly is designed for Cube67 I/O systems, providing both power and data transmission in a single cable for industrial automation applications.

Key Features

• M12 male connector (90° angled) to M12 female connector (90° angled)
• A-coded for hybrid power and data transmission
• SF/UTP (Screened Foiled/Unshielded Twisted Pair) shielded construction
• PUR cable jacket for superior durability and chemical resistance
• UL/CSA certified for North American installations
• IP67 protection rating when connectors are mated
• Green cable color for easy identification
• Specifically designed for Cube67 I/O system connectivity

Technical Specifications

• Connector Type: M12 x 1 threaded, 90-degree angled (both ends)

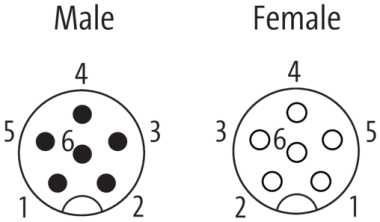

• Coding: A-coded (6-pole hybrid)
• Cable Length: 1.0 meters
• Wire Configuration: 4 x 0.5mm² + 2 x 0.25mm² shielded hybrid cable
• Power Conductors: 4 x 0.5mm² for power transmission
• Data Conductors: 2 x 0.25mm² for data communication
• Cable Type: PUR (Polyurethane) jacketed with drag chain capability
• Shielding: SF/UTP construction with foil and braid shield
• Operating Voltage: 60V AC/DC maximum (30V AC/DC UL listed)
• Operating Current: 4A per power contact
• Operating Temperature: -25°C to +80°C
• Protection Rating: IP67 when properly mated
• Bend Radius: Suitable for drag chain applications

Transmission Characteristics

• Hybrid cable design for simultaneous power and data transmission
• Power and data isolation for reliable operation
• Suitable for Cube67 I/O module interconnection
• Low-voltage differential signaling capability

Applications Ideal for Cube67 decentralized I/O system applications:

• Cube67 I/O module interconnection
• Industrial automation control systems
• Decentralized field device connections
• Machine control and monitoring systems
• Process control applications
• Factory automation networks requiring both power and data

Compliance & Standards

• UL Listed - Hybrid cable assemblies for industrial control
• CSA certified for Canadian installations
• Cube67 system compatibility
• RoHS compliant
• Resistant to welding sparks and industrial chemicals

Download existing graphical data for this product:

Product Datasheet
