Murr M12 male 0° X-code/RJ45 male 0° Gigabit, 8-pole, 5m

Product Overview

High-speed Gigabit Ethernet extension cable (SKU: 7000-51101-7900500) featuring M12 male straight connector to RJ45 male straight connector with X-coding. This premium shielded cable assembly bridges industrial M12 X-coded networks to standard Gigabit Ethernet infrastructure, providing high-speed data transmission up to 10 Gigabits per second in demanding industrial environments.

Key Features

• M12 male connector (0° straight) to RJ45 male connector (0° straight)
• X-coded for high-speed Gigabit Ethernet applications
• Category 6A (CAT6A) performance specifications
• SF/UTP (Screened Foiled/Unshielded Twisted Pair) shielded construction
• PUR cable jacket for superior durability and chemical resistance
• UL/CSA certified for North American installations
• IP67 protection rating on M12 connector when mated
• Green cable color for Ethernet network identification
• Support for 10 Gigabit Ethernet transmission rates

Technical Specifications

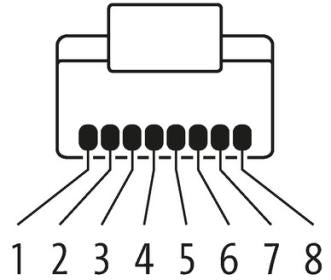

• Connector Type: M12 x 1 threaded (male) to RJ45 8P8C (male)

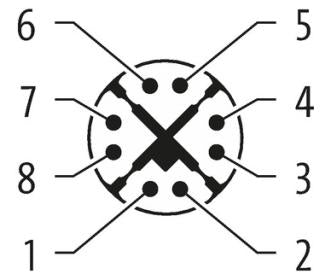

• Coding: X-coded (8-pole high-speed Ethernet)
• Cable Length: 5.0 meters

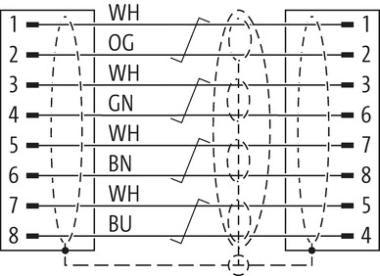

• Wire Configuration: 4 x 2 x AWG26 shielded twisted pairs
• Wire Gauge: AWG26 stranded copper conductors
• Cable Type: PUR (Polyurethane) jacketed
• Shielding: SF/UTP construction with foil and braid shield
• Operating Voltage: 60V DC maximum
• Operating Current: 0.5A maximum per contact
• Operating Temperature: -25°C to +80°C
• Protection Rating: IP67 (M12 connector when mated)

Transmission Characteristics

• Category 6A / ISO Class EA compliance
• Data Rate: Up to 10 Gigabits per second (10 GBit/s)
• Transmission Protocol: Gigabit Ethernet, 10 Gigabit Ethernet
• Bandwidth: 500 MHz transmission frequency
• Impedance: 100 Ohm ±15%
• Suitable for high-speed industrial Ethernet applications

Applications Perfect for high-speed industrial Ethernet connectivity requiring maximum data throughput:

• Industrial Gigabit and 10 Gigabit Ethernet networks
• High-speed machine control and monitoring systems
• Real-time industrial communication networks
• Factory automation systems requiring high bandwidth
• Process control applications with high data requirements
• Industrial IoT and Industry 4.0 implementations
• High-resolution video transmission in industrial environments

Compliance & Standards

• UL Listed - High-speed communications & data cable assemblies
• CSA certified for Canadian installations
• Category 6A Ethernet performance standards
• RoHS compliant
• Resistant to welding sparks and industrial chemicals
• Industrial grade construction for harsh environments

Download existing graphical data for this product:

Product Datasheet
