Murr M12 male 0° with cable, male, straight, 4-pole, 15m

Product Overview

The Murrelektronik M12 male straight connector is a pre-assembled cordset designed for industrial sensor and actuator connectivity applications. This A-coded signal connector features a 15-meter PUR cable with 4x0.34mm² conductors, terminated with open-ended wires for direct connection to control systems. Rated for signal applications with drag chain capability and UL/CSA certification, it provides reliable long-distance connectivity in demanding industrial automation environments.

Key Features

• M12 male straight (0°) connector with A-coding for signal applications
• 15-meter PUR cable with drag chain capability for extended reach applications
• 4x0.34mm² conductors optimized for signal transmission over longer distances
• UL/CSA certification for North American applications
• Gold-plated contacts ensuring optimum conductivity
• Black cable jacket for professional appearance

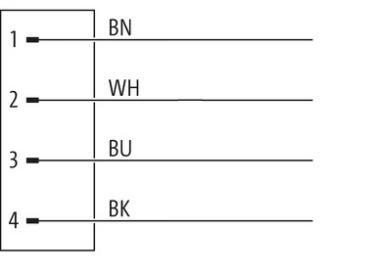

• Open-ended wire termination with cable sleeves for flexible connections
• 100% tested during manufacturing process for highest quality and reliability

Technical Specifications

• Article Number: 7000-12021-6341500

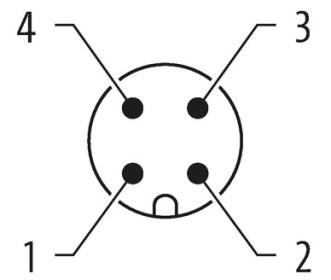

• Connector Type: M12 male straight (0°), A-coded
• Cable Length: 15 meters
• Conductor Specification: 4x0.34mm² PUR cable
• Voltage Rating: Signal applications
• Cable Type: PUR (Polyurethane), black with drag chain capability
• Contact Material: Gold-plated for optimum conductivity
• Protection Rating: IP67 when mated

Applications

• Long-distance industrial sensor and actuator signal connections
• Extended reach machine control signal transmission
• Process control signal applications across large equipment
• Factory automation sensor networks requiring extended cable runs
• Robotics and automated systems with wide operational ranges
• Conveyor systems and material handling equipment

Standards and Compliance

• Certification: UL/CSA approved for North American markets
• Drag Chain Standards: Certified for dynamic flex applications over extended lengths
• Quality Standards: German engineering and manufacturing
• Protection Standards: Industrial-grade environmental protection with IP67 rating

Benefits

• Pre-assembled construction eliminates field termination errors
• PUR cable provides superior flexibility and chemical resistance for harsh environments
• Vibration-resistant design with union nut vibration protection
• Gold-plated contacts ensure long-term reliable connectivity over extended distances
• Drag chain capability enables use in large-scale moving machinery applications
• Extended 15-meter length reduces need for intermediate connections
• Resistance to oils and cooling lubricants for industrial environments
• Cable sleeves included for professional installation
• Plastic housings with good resistance against chemicals and oils
• Ideal for applications requiring signal integrity over longer cable runs

Download existing graphical data for this product:

• Data Sheet
