Product Overview
Industrial Ethernet extension cable featuring M12 male straight connector to RJ45 male straight connector with D-coding. This high-quality shielded cable assembly bridges industrial M12 networks to standard Ethernet infrastructure, providing reliable data transmission in demanding environments over extended distances.
Key Features
Technical Specifications
Transmission Characteristics
Applications Perfect for connecting Industrial Ethernet devices to standard network infrastructure over longer distances:
Compliance & Standards
Download existing graphical data for this product:
IP Rating | IP20 |
Tariff | 85444290 |
GTIN | 4048879437967 |
Temperature: Operating / Dynamic | -30°C to 70°C |
Material: Jacket / Cover Nut | PUR |
Cable Type | 794 |

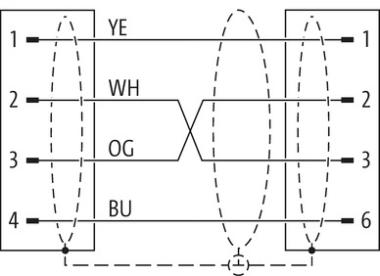

Wire arrangement | white / yellow / blue / orange |
Bending Radius | 6 x Outer diameter (Fixed) / 12 x Outer diameter (Moving) |
Cable Length (mm) | 20 000mm |
Cable Weight | 75.87 g/m |
Conductor Cross-section | 22 AWG |
Thread | M12 x 1 |
Connection Type | Male (Straight) / 4 Poles |
Connection Style | Inserted / Screwed |
Tightening Torque | 0.6Nm |
Operating Voltage | 60 V |
Nominal Voltage | 300 V |
Current Rating / Rated Current | 1.5A |
Colour | Green |
