Murr M12 male 0°/M8 female 90°, 3-pole, 1m

Product Overview

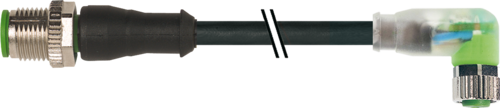

This M12 to M8 connection cable with LED status indicator (SKU: 7000-40641-6300100) features male M12 straight (0°) connector and female M8 90° angled connector, both with A-coding for reliable signal transmission between different connector sizes in industrial automation applications. The 1-meter cable with black PUR jacket includes integrated LED status indicator for visual feedback and diagnostic capabilities.

Connector Configuration:

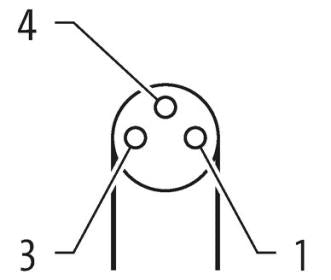

• Male connector: M12, 3-pole, 0° straight, A-coded
• Female connector: M8, 3-pole, 90° angled, A-coded
• Thread: M12 x 1mm (male), M8 x 1mm (female), self-securing
• Tightening torque: 0.6 Nm
• Protection: IP67
• Housing: Plastic with chemical/oil resistance

LED Status Indicator:

• Configuration: LED status indicator (yellow/green)
• Function: Visual status indication and diagnostics
• Colors: Yellow/green status indication
• Mounting: Integrated into connector housing

Cable Specifications:

• Material: PUR jacket (halogen-free)
• Cross-section: 3 x 0.25 mm²
• Color: Black
• Length: 1 meter

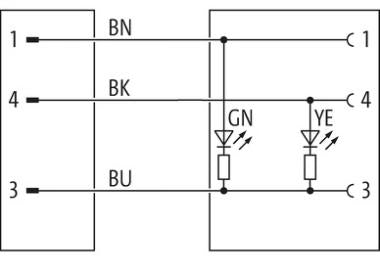

• Wire arrangement: Brown, black, blue
• Temperature range: -40°C to +80°C (static), -25°C to +80°C (dynamic)
• Drag chain certified

Electrical Characteristics:

• Operating voltage: 60V DC max.
• Current rating: 4A max. per contact
• Conductor: Stranded copper wire
• Electrical resistance: Optimized for short cable runs

Environmental Performance:

• Bending radius (fixed): 5 x outer diameter
• Bending radius (dynamic): 10 x outer diameter
• UV resistance: Good with PUR jacket
• Chemical and oil resistance: Good (application testing recommended)
• Drag chain compatibility: Certified for dynamic applications

Material & Construction:

• Connector housings: Plastic with chemical and oil resistance
• Jacket material: PUR (Polyurethane) - black color, halogen-free
• Shore hardness: Industrial-grade flexibility
• Material compliance: Lead-free, cadmium-free, CFC-free, halogen-free

Certifications & Compliance:

• UL/CSA certified
• DIN EN 61076-2-101 (M12) and DIN EN 61076-2-104 (M8) compliant
• Material compliance: Lead-free, cadmium-free, CFC-free, halogen-free
• Material group: IEC 60664-1, category I
• Drag chain compatible

Applications

Designed for compact industrial automation environments requiring visual status monitoring and space-efficient 90° angled M8 connections. The integrated LED indicator provides immediate feedback on connection status and signal presence. Ideal for sensor/actuator interfacing where space constraints require angled connections, control panel installations, and applications where M12 control systems need to connect to M8 devices with visual diagnostic capabilities.

Download existing graphical data for this product:

Product Datasheet
