Murr M12 male 0° / M12 female 0° A-code, LED, 4-pole, 15m

Product Overview

This M12 connection cable with LED status indicators (SKU: 7000-40311-6541500) features male straight (0°) connector and female straight (0°) connector, both with A-coding for reliable signal transmission in industrial automation applications. The 15-meter cable with PUR jacket includes integrated LED status indicators for visual feedback and diagnostic capabilities in extended-reach installations.

Connector Configuration:

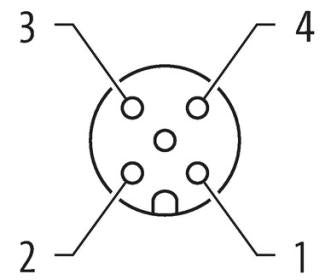

• Male connector: M12, 4-pole, 0° straight, A-coded
• Female connector: M12, 4-pole, 0° straight, A-coded
• Thread: M12 x 1mm, self-securing
• Tightening torque: 0.6 Nm
• Protection degree: IP66K, IP67
• Width across flats: SW13

LED Status Indicators:

• Configuration: 2× LED indicators
• Type: PNP (NPN available on request)
• Function: Visual status indication and diagnostics
• Colors: Multi-color status indication
• Mounting: Integrated into connector housing

Cable Properties:

• Material: PUR jacket with PP wire insulation
• Cross-section: 4 x 0.34 mm²
• Color: Black

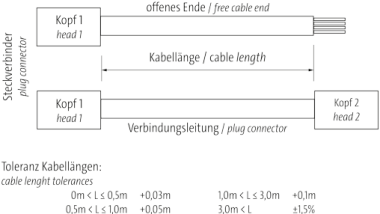

• Length: 15 meters
• Outer diameter: 4.5 mm (±5% tolerance)
• Weight: 36.3 g/m

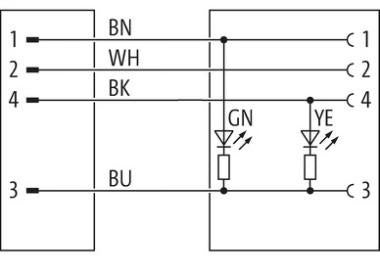

• Wire arrangement: Brown, black, blue, white

Electrical Characteristics:

• Operating voltage: 250V AC/DC max.
• Current rating: 4A max. per contact
• Nominal voltage: 300V AC max.
• AC withstand voltage: 2.5 kV @ 60s (wire-wire and wire-jacket)
• Electrical resistance: 57 Ω/km @ 20°C
• Conductor: Stranded copper wire (class 6), 42 strands x 0.1mm diameter

Environmental Performance:

• Operating temperature (static): -40°C to +80°C/+90°C
• Operating temperature (dynamic): -25°C to +80°C/+90°C
• Bending radius (fixed): 5 x outer diameter
• Bending radius (dynamic): 10 x outer diameter
• UV resistance: DIN EN ISO 4892-2 A
• Chemical, gasoline, and oil resistance: Good (application testing recommended)

Dynamic Applications:

• Drag chain certified: 10 million bending cycles @ 25°C
• Travel distance: 15m horizontal @ 25°C
• Travel speed: 3 m/s @ 25°C
• Torsion cycles: 2 million cycles at ±180°/m
• Torsion speed: 35 cycles/min

Material & Construction:

• Connector housing: Zinc die-cast, nickel-plated
• Shore hardness (jacket): 90 ±5 Shore A
• Shore hardness (insulation): 70 ±5 Shore D
• Material compliance: Lead-free, cadmium-free, CFC-free, halogen-free, silicone-free

Standards & Certifications:

• Product standard: DIN EN 61076-2-101 (M12)
• UL/CSA certified (cURus)
• Flame resistance: UL 1581 § 1090, IEC 60332-2-2, UL 1581 § 1100 FT2
• Material group: IEC 60664-1, category I
• Pollution degree: 3

Applications Designed for industrial automation environments requiring visual status monitoring and diagnostic capabilities over extended distances. The integrated LED indicators provide immediate feedback on connection status, signal presence, and system diagnostics across longer cable runs. Ideal for large-scale installations, distributed sensor networks, and remote monitoring applications where visual confirmation of system status is critical over 15-meter distances.
