Murr M12 male 0° / M12 female 0°, A-code, LED, 4-pole, 1.5m

Product Overview

This M12 connection cable with LED status indicators (SKU: 7000-40311-6540150) features male straight (0°) connector and female straight (0°) connector, both with A-coding for reliable signal transmission in industrial automation applications. The 1.5-meter cable with PUR jacket includes integrated LED status indicators for visual feedback and diagnostic capabilities.

Connector Configuration:

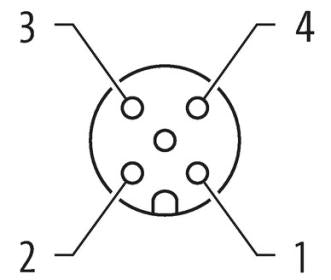

• Male connector: M12, 4-pole, 0° straight, A-coded
• Female connector: M12, 4-pole, 0° straight, A-coded
• Thread: M12 x 1mm, self-securing
• Tightening torque: 0.6 Nm
• Protection degree: IP66K, IP67
• Width across flats: SW13

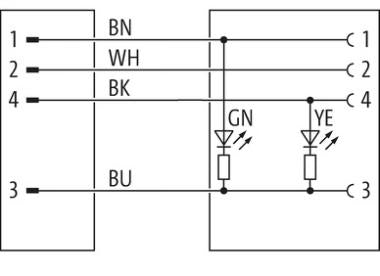

LED Status Indicators:

• Configuration: 2× LED indicators
• Type: PNP (NPN available on request)
• Function: Visual status indication and diagnostics
• Colors: Multi-color status indication
• Mounting: Integrated into connector housing

Cable Properties:

• Material: PUR jacket with PP wire insulation
• Cross-section: 4 x 0.34 mm²
• Color: Black

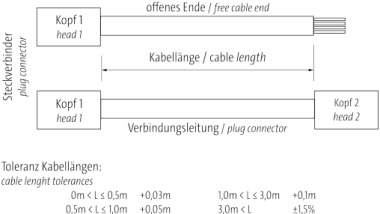

• Length: 1.5 meters
• Outer diameter: 4.5 mm (±5% tolerance)
• Weight: 36.3 g/m
• Wire arrangement: Brown, black, blue, white

Electrical Characteristics:

• Operating voltage: 250V AC/DC max.
• Current rating: 4A max. per contact
• Nominal voltage: 300V AC max.
• AC withstand voltage: 2.5 kV @ 60s (wire-wire and wire-jacket)
• Electrical resistance: 57 Ω/km @ 20°C
• Conductor: Stranded copper wire (class 6), 42 strands x 0.1mm diameter

Environmental Performance:

• Operating temperature (static): -40°C to +80°C/+90°C
• Operating temperature (dynamic): -25°C to +80°C/+90°C
• Bending radius (fixed): 5 x outer diameter
• Bending radius (dynamic): 10 x outer diameter
• UV resistance: DIN EN ISO 4892-2 A
• Chemical, gasoline, and oil resistance: Good (application testing recommended)

Dynamic Applications:

• Drag chain certified: 10 million bending cycles @ 25°C
• Travel distance: 10m horizontal @ 25°C
• Travel speed: 3 m/s @ 25°C
• Torsion cycles: 2 million cycles at ±180°/m
• Torsion speed: 35 cycles/min

Material & Construction:

• Connector housing: Zinc die-cast, nickel-plated
• Shore hardness (jacket): 90 ±5 Shore A
• Shore hardness (insulation): 70 ±5 Shore D
• Material compliance: Lead-free, cadmium-free, CFC-free, halogen-free, silicone-free

Standards & Certifications:

• Product standard: DIN EN 61076-2-101 (M12)
• UL/CSA certified (cURus)
• Flame resistance: UL 1581 § 1090, IEC 60332-2-2, UL 1581 § 1100 FT2
• Material group: IEC 60664-1, category I
• Pollution degree: 3

Applications Designed for industrial automation environments requiring visual status monitoring and diagnostic capabilities. The integrated LED indicators provide immediate feedback on connection status, signal presence, and system diagnostics. Ideal for sensor monitoring, actuator control, and troubleshooting applications where visual confirmation of system status is critical.

Download existing graphical data for this product:

Product Datasheet
