Murr M12 male 0° / M12 female 0°, A-code, 5-pole, 15m

Product Overview

The Murrelektronik M12 connection cable features M12 male straight to M12 female straight A-coded connectors with a 15-meter PUR cable. Designed for 5-pole industrial automation signal transmission over maximum distances with enhanced flexibility, it provides reliable connections for sensors and actuators requiring additional signal lines with UL/CSA certification and drag chain capability.

Key Features

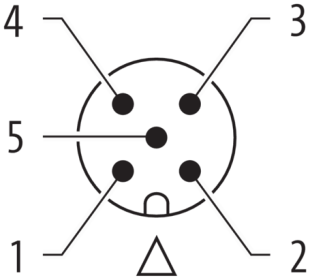

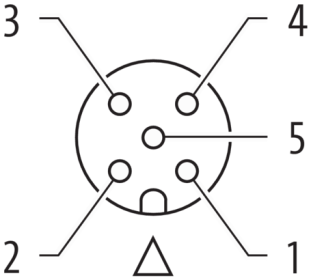

• M12 male straight to M12 female straight A-coded configuration
• Maximum 15-meter PUR cable with superior flexibility and drag chain capability
• 5x0.34mm² conductors for multi-signal transmission
• UL/CSA certified with IP67 protection rating
• Chemical and oil resistant plastic housings
• Pre-assembled for immediate installation

Technical Specifications

• Article Number: 7000-40041-6351500
• Cable Length: 15 meters
• Conductor Specification: 5x0.34mm² (#22 AWG)
• Cable Type: PUR (Polyurethane), black jacket
• Protection Rating: IP67
• Certification: UL/CSA approved
• Features: Drag chain capable

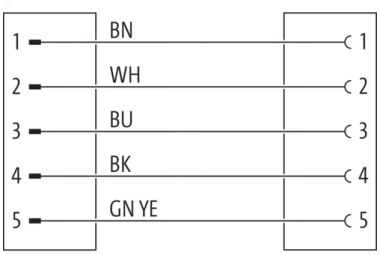

• Pole Configuration: 5-pole

Applications

• Maximum-distance 5-pole sensor and actuator connections
• Large facility automation requiring extended flexible signal distribution
• Dynamic multi-signal industrial equipment across wide areas
• Process control applications with complex long-distance flexible requirements
• Factory automation systems needing maximum-reach 5-pole connectivity with movement

Benefits

• Pre-assembled construction eliminates field termination
• A-coded configuration ensures proper orientation
• 5-pole design supports multiple signal requirements
• PUR cable provides superior flexibility for dynamic applications
• Maximum 15-meter reach with drag chain capability for ultimate positioning flexibility

Download existing graphical data for this product:

• Data Sheet
