Murr M12, male 0° / female 90°, A-code, 5-pole, black, 15m

Product Overview

The Murrelektronik M12 connection cable features M12 male straight to M12 female 90° A-coded connectors with a 15-meter PVC cable. Designed for 5-pole industrial automation signal transmission over maximum distances where angled connections are required, it provides reliable connections for sensors and actuators requiring additional signal lines in space-constrained installations with UL/CSA certification.

Key Features

• M12 male straight to M12 female 90° A-coded configuration
• Maximum 15-meter PVC cable for long-distance connections
• 5x0.34mm² conductors for multi-signal transmission
• UL/CSA certified with IP67 protection rating
• 90° female connector for space-saving installations
• Pre-assembled for immediate installation

Technical Specifications

• Article Number: 7000-40141-6151500
• Cable Length: 15 meters

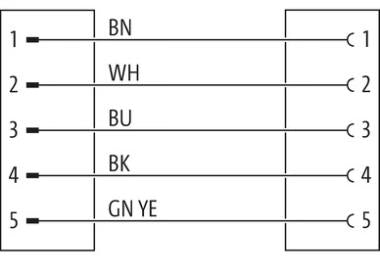

• Conductor Specification: 5x0.34mm² (#22 AWG)
• Cable Type: PVC (Polyvinyl Chloride), black jacket

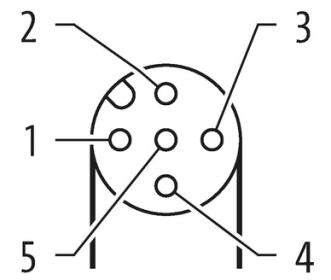

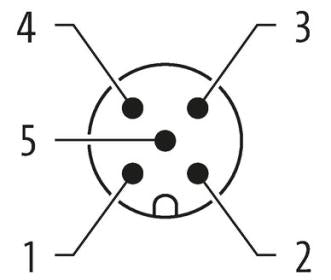

• Connector Configuration: M12 male straight to M12 female 90°
• Coding: A-coded
• Protection Rating: IP67
• Certification: UL/CSA approved
• Pole Configuration: 5-pole

Applications

• Maximum-distance 5-pole connections requiring angled routing
• Large facility automation with space constraints and extensive signal requirements
• Panel-mounted equipment needing maximum-reach 90° cable routing
• Multi-signal industrial equipment with clearance limitations across wide areas
• Process control applications requiring angled routing and multiple signals over maximum distances

Benefits

• Pre-assembled construction eliminates field termination
• A-coded configuration ensures proper orientation
• 90° female connector saves installation space
• 5-pole design supports multiple signal requirements
• Maximum 15-meter reach with angled design for ultimate positioning flexibility

Download existing graphical data for this product:

• Data Sheet
