Murr M12 male 0°/female 0°, robot, black, 4-pole, 2.5m

Product Overview

The Murrelektronik M12 connection cable features M12 male straight to M12 female straight A-coded connectors with a 2.5-meter robot-grade PUR cable. Designed for robotic applications requiring medium-distance connections, it provides reliable signal transmission for sensors and actuators with UL/CSA certification, robot cable specifications, and drag chain capability.

Key Features

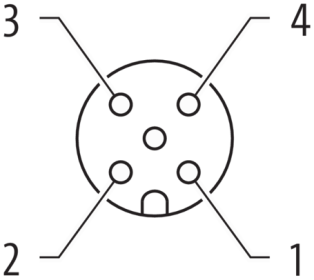

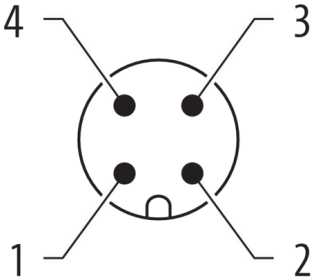

• M12 male straight to M12 female straight A-coded configuration
• 2.5-meter robot-grade PUR cable with enhanced flexibility
• 4x0.34mm² conductors for reliable signal transmission
• UL/CSA certified with robot cable and drag chain capability
• Chemical and oil resistant plastic housings
• Pre-assembled for immediate installation

Technical Specifications

• Article Number: 7000-40021-6540250

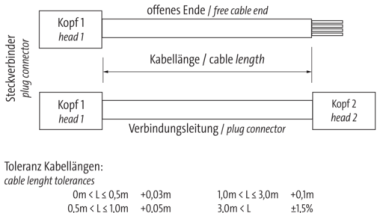

• Cable Length: 2.5 meters

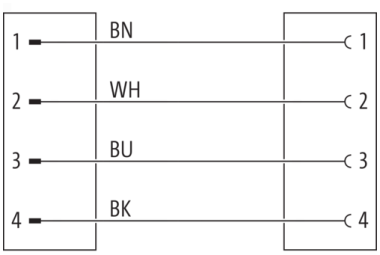

• Conductor Specification: 4x0.34mm² (#22 AWG)
• Cable Type: PUR (Polyurethane), robot-grade, black jacket
• Protection Rating: IP67
• Certification: UL/CSA approved
• Features: Robot cable, drag chain capable

Applications

• Robotic system sensor and actuator connections
• Medium-distance signal transmission in robotics
• Automated manufacturing equipment interconnection
• Industrial robotics with extended reach requirements
• Dynamic automation applications with continuous movement

Benefits

• Pre-assembled construction eliminates field termination
• A-coded configuration ensures proper orientation
• Robot-grade PUR cable for maximum flexibility and durability
• Optimized for robotic applications with continuous movement
• Ideal length for medium-reach robotic connections

Download existing graphical data for this product:

• Data Sheet
