Murr M12, male 0° / female 0°, A-code, 4-pole, grey, 5m

Product Overview

M12 connection cable (SKU: 7014-40021-2140500) designed for Food & Beverage applications in industrial automation systems. This A-coded 4-pole extension cable features M12 male straight to M12 female straight connectors with 5 meters of gray cable for reliable signal transmission between sensors, actuators, and control systems in hygienic environments.

Key Features

• M12 male straight (0°) to M12 female straight (0°) A-coded connectors
• 5-meter connection cable for signal extension applications
• 4-pole configuration for standard sensor and actuator connections
• Food & Beverage industry compliant design and materials
• Stainless steel connector housings for hygienic applications
• A-coded design ensures proper connection orientation
• Ready-to-use extension cable for immediate installation
• Compatible with standard M12 A-coded devices and systems

Technical Specifications

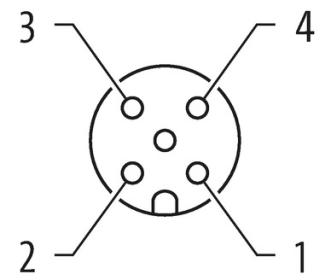

• Connector 1: M12 male straight (0°) A-coded, 4-pole
• Connector 2: M12 female straight (0°) A-coded, 4-pole
• Cable Length: 5 meters

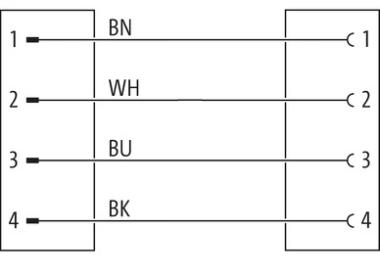

• Wire Configuration: 4-pole signal transmission
• Cable Type: Industrial grade with gray jacket
• Housing Material: Stainless steel construction
• Protection Rating: IP67 (when properly mated)
• Operating Temperature: Standard industrial temperature range

Applications

• Food & Beverage processing equipment signal extension
• Sensor and actuator connection extension in hygienic environments
• Equipment connections requiring M12 interface extension
• Control system signal distribution in processing facilities
• Machine automation requiring hygienic connector solutions
• Process control installations with washdown requirements

Compliance & Standards

• Food & Beverage industry compliant materials
• A-coding compliant with IEC 61076-2-101 standards
• Stainless steel construction for hygienic requirements
• IP67 protection rating for industrial environments
• RoHS compliant materials

Download existing graphical data for this product:

Product Datasheet
