Murr M12 male 0°, A-code with cable, 5-pole, black, 10m

Product Overview

The Murrelektronik M12 male straight connector is a pre-assembled cordset designed for industrial sensor and actuator connectivity applications. This A-coded signal connector features a 10-meter PUR cable with 5x0.34mm² conductors, terminated with open-ended wires for direct connection to control systems. Rated for signal applications with drag chain capability and UL/CSA certification, it provides reliable long-distance connectivity for 5-pole sensor applications in demanding industrial automation environments.

Key Features

• M12 male straight (0°) connector with A-coding for 5-pole signal applications
• 10-meter PUR cable with drag chain capability for dynamic applications
• 5x0.34mm² conductors optimized for multi-signal transmission over extended distances
• UL/CSA certification for North American applications
• Gold-plated contacts ensuring optimum conductivity
• Black cable jacket for professional appearance
• Open-ended wire termination with cable sleeves for flexible connections
• 100% tested during manufacturing process for highest quality and reliability

Technical Specifications

• Article Number: 7000-12041-6351000

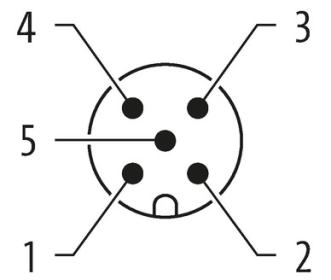

• Connector Type: M12 male straight (0°), A-coded, 5-pole
• Cable Length: 10 meters

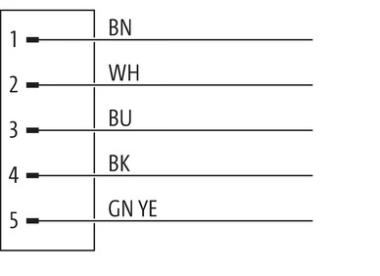

• Conductor Specification: 5x0.34mm² PUR cable
• Voltage Rating: Signal applications
• Cable Type: PUR (Polyurethane), black with drag chain capability
• Contact Material: Gold-plated for optimum conductivity
• Protection Rating: IP67 when mated

Applications

• Extended reach 5-pole industrial sensor and actuator signal connections in moving applications
• Long-distance multi-signal machine control transmission with dynamic requirements
• Process control applications requiring additional signal lines in moving equipment
• Factory automation sensor networks with expanded I/O requirements and drag chain systems
• Advanced sensor connectivity with power and multiple signal lines for robotic applications
• Encoder and feedback device connections in automated systems with moving components
• Material handling and conveyor systems requiring flexible cable management

Standards and Compliance

• Certification: UL/CSA approved for North American markets
• Drag Chain Standards: Certified for dynamic flex applications over extended lengths
• Quality Standards: German engineering and manufacturing
• Protection Standards: Industrial-grade environmental protection with IP67 rating

Benefits

• Pre-assembled construction eliminates field termination errors
• PUR cable provides superior flexibility and chemical resistance for harsh environments
• Vibration-resistant design with union nut vibration protection
• Gold-plated contacts ensure long-term reliable connectivity over extended distances
• 5-pole configuration enables power and multiple signal transmission
• Drag chain capability enables use in moving machinery and robotic applications
• 10-meter length reduces need for intermediate connections in large installations
• Resistance to oils and cooling lubricants for industrial environments
• Cable sleeves included for professional installation
• Plastic housings with good resistance against chemicals and oils
• Ideal for sensors requiring both power and multiple signal connections in dynamic applications

Download existing graphical data for this product:

• Data Sheet
