Murr M12 male 0°, A-code with cable, 4-pole, 0.3m

Product Overview

The Murrelektronik M12 male straight connector is a pre-assembled cordset designed for industrial sensor and actuator connectivity applications. This A-coded signal connector features a 3-meter PUR cable with 4x0.34mm² conductors, terminated with open-ended wires for direct connection to control systems. Rated for signal applications with drag chain capability and UL/CSA certification, it provides reliable connectivity in demanding industrial automation environments.

Key Features

• M12 male straight (0°) connector with A-coding for signal applications
• 3-meter PUR cable with drag chain capability for dynamic applications
• 4x0.34mm² conductors optimized for signal transmission
• UL/CSA certification for North American applications
• Gold-plated contacts ensuring optimum conductivity
• Black cable jacket for professional appearance
• Open-ended wire termination with cable sleeves for flexible connections
• 100% tested during manufacturing process for highest quality and reliability

Technical Specifications

• Article Number: 7000-12021-6340030

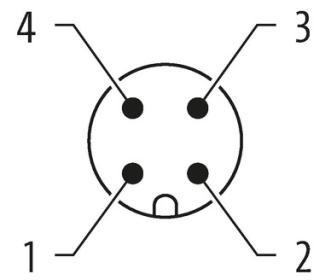

• Connector Type: M12 male straight (0°), A-coded
• Cable Length: 3 meters

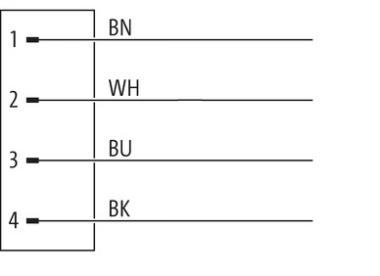

• Conductor Specification: 4x0.34mm² PUR cable
• Voltage Rating: Signal applications
• Cable Type: PUR (Polyurethane), black with drag chain capability
• Contact Material: Gold-plated for optimum conductivity
• Protection Rating: IP67 when mated

Applications

• Industrial sensor and actuator signal connections
• Machine control signal transmission in moving applications
• Process control signal applications with dynamic requirements
• Factory automation sensor networks with drag chain systems
• Robotics and automated equipment connectivity

Standards and Compliance

• Certification: UL/CSA approved for North American markets
• Drag Chain Standards: Certified for dynamic flex applications
• Quality Standards: German engineering and manufacturing
• Protection Standards: Industrial-grade environmental protection with IP67 rating

Benefits

• Pre-assembled construction eliminates field termination errors
• PUR cable provides superior flexibility and chemical resistance for harsh environments
• Vibration-resistant design with union nut vibration protection
• Gold-plated contacts ensure long-term reliable connectivity
• Drag chain capability enables use in moving machinery and robotic applications
• Resistance to oils and cooling lubricants for industrial environments
• Cable sleeves included for professional installation
• Plastic housings with good resistance against chemicals and oils

Download existing graphical data for this product:

• Data Sheet
