Murr M12 male 0° A-code / MSUD valve plug A, 0.3m

Product Overview

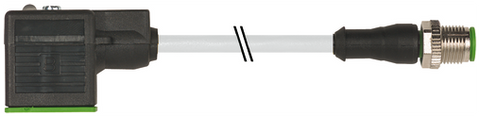

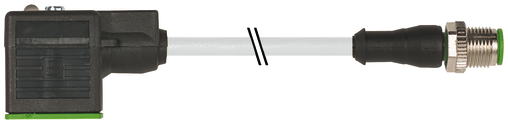

This M12 to MSUD valve plug connection cable (SKU: 7000-40931-2350030) features male M12 straight (0°) connector and MSUD valve plug Form A (18mm) specifically designed for pressure switch applications. The 0.3-meter cable with gray PUR jacket provides compact connectivity for valve control and pressure monitoring in industrial automation systems.

Connector Configuration:

• Input connector: M12, 3-pole, 0° straight, A-coded (male)
• Output connector: MSUD valve plug, Form A (18mm diameter)
• Thread: M12 x 1mm (input), self-securing
• Tightening torque: 0.6 Nm
• Protection: IP67 (M12), IP65 (valve plug)
• Housing: Plastic with chemical/oil resistance

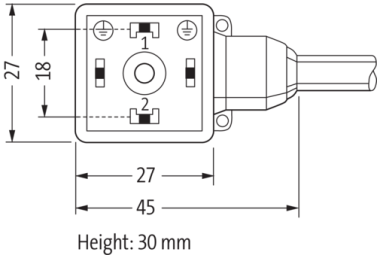

Valve Connector Specifications:

• Form: MSUD Form A (18mm diameter)
• Voltage rating: 24V DC ±25%
• Application: Pressure switches and valve control
• LED indicator: Yellow/green status indication
• Suppression: Built-in electrical noise suppression
• Specialized design: Optimized for pressure switch applications

Cable Specifications:

• Material: PUR jacket
• Cross-section: 3 x 0.75 mm²
• Color: Gray
• Length: 0.3 meters
• Wire arrangement: Brown, black, blue
• Temperature range: -40°C to +80°C (static), -25°C to +80°C (dynamic)

Electrical Characteristics:

• Operating voltage: 24V DC ±25%
• Current rating: Higher capacity for valve applications
• Conductor: Stranded copper wire, larger gauge for valve control
• Electrical resistance: Optimized for pressure switch applications

Environmental Performance:

• Bending radius (fixed): 5 x outer diameter
• Bending radius (dynamic): 10 x outer diameter
• UV resistance: Good with PUR jacket
• Chemical and oil resistance: Excellent for hydraulic/pneumatic environments
• Compact design: Minimal space requirements

Material & Construction:

• Connector housings: Plastic with chemical and oil resistance
• Valve plug: MSUD standard Form A construction
• Jacket material: PUR (Polyurethane) - gray color
• Shore hardness: Industrial-grade flexibility
• Material compliance: Lead-free, cadmium-free, CFC-free

Certifications & Compliance:

• UL/CSA certified
• DIN EN 61076-2-101 (M12) compliant
• MSUD valve standard compliance
• Material compliance: Lead-free, cadmium-free, CFC-free
• Material group: IEC 60664-1, category I

Applications

Designed specifically for pressure switch applications in industrial automation environments requiring compact connections between M12 automation systems and MSUD standard valve connectors. Ideal for hydraulic and pneumatic pressure monitoring, valve control systems, and automated machinery where M12 control signals need to interface with pressure switches using standard 18mm valve connectors in space-constrained installations.

Download existing graphical data for this product:

Product Datasheet
