Murr M12 female 90° with cable, 4-pole, 15m

Product Overview

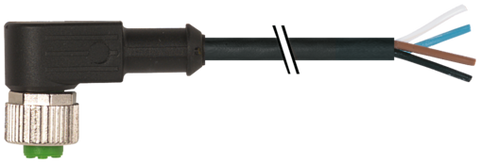

M12 female connector with a 90-degree angled design and integrated PUR cable assembly. This high-performance connector is engineered for reliable electrical connections in demanding industrial environments, particularly where angled connections and flexible routing are required.

Key Features

• M12 female connector with 90-degree angled orientation
• Pre-assembled 15 m PUR cable for easy installation
• Rugged construction, resistant to oils and chemicals
• Suitable for drag-chain applications (high mechanical durability)
• Compact form factor for space-constrained setups

Technical Specifications

• Connector Type: M12 female, A-coded, 90-degree angled
• Cable: PUR, 4 × 0.34 mm² (approx. AWG 22), black, UL/CSA compliant
• Housing Material: Plastic body with nickel-plated zinc die-cast nut
• Contact Material: Copper alloy with gold plating
• Protection Rating: IP65/IP66K/IP67 when properly mated
• Operating Temperature:
• Fixed: −40 °C to +80 °C (up to +90 °C for 10,000 h)
• Mobile: −25 °C to +80 °C (up to +90 °C for 10,000 h)
• Voltage Rating: 250 V AC/DC (30 V under UL listing)
• Current Rating: Up to 4 A per contact

Applications

• Industrial automation systems
• Sensors and actuators in field installations
• Robotics and machine control panels
• Process and factory automation equipment
• Harsh-environment connectivity requiring flexible, durable cabling

Installation Notes

• Ensure proper mating with compatible M12 male connectors
• Verify routing accommodates the 90-degree angled orientation
• Maintain recommended tightening torque (0.6 Nm) for reliable sealing
• Confirm environmental sealing to achieve IP67 rating
