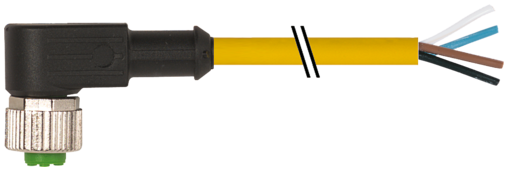

Murr M12 female 90° A-code with cable, yellow, 4-pole, 5m Part number 7000-12341-0240500

Product Overview

The Murrelektronik M12 female 90° angled connector is a pre-assembled cordset designed for industrial sensor and actuator connectivity applications where space constraints require a right-angle connection with enhanced visibility. This A-coded signal connector features a 5-meter PUR cable with 4x0.34mm² conductors in yellow color, terminated with open-ended wires for direct connection to control systems. Rated for signal applications with drag chain capability and UL/CSA certification, it provides reliable connectivity in space-constrained industrial automation environments requiring high visibility and dynamic flexibility.

Key Features

• M12 female 90° angled connector with A-coding for space-constrained signal applications
• 5-meter PUR cable with drag chain capability for dynamic applications
• 4x0.34mm² conductors optimized for signal transmission
• UL/CSA certification for North American applications
• Gold-plated contacts ensuring optimum conductivity
• Yellow cable jacket for enhanced visibility and safety identification

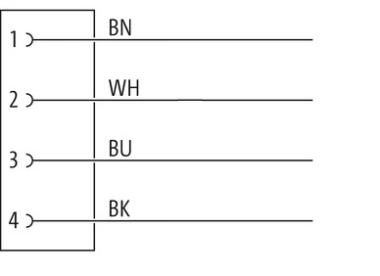

• Open-ended wire termination with cable sleeves for flexible connections
• 100% tested during manufacturing process for highest quality and reliability

Technical Specifications

• Article Number: 7000-12341-0240500

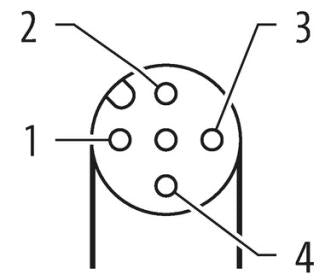

• Connector Type: M12 female 90° angled, A-coded
• Cable Length: 5 meters
• Conductor Specification: 4x0.34mm² PUR cable
• Voltage Rating: Up to 250V AC/DC
• Current Rating: 4A maximum per contact
• Operating Temperature: -40°C to +80°C
• Cable Type: PUR (Polyurethane), yellow with drag chain capability
• Contact Material: Gold-plated for optimum conductivity
• Protection Rating: IP67 when mated

Applications

• Space-constrained industrial sensor and actuator signal connections requiring high visibility
• Panel-mounted equipment requiring right-angle connectivity with safety identification
• Machine control signal transmission in tight spaces requiring visual differentiation
• Process control applications with limited clearance and safety color coding requirements
• Factory automation sensor networks in compact installations requiring cable identification
• Robotics and automated equipment where space efficiency and cable visibility are critical
• Safety-critical applications where yellow cable coding enhances maintenance and troubleshooting

Standards and Compliance

• Certification: UL/CSA approved for North American markets
• Drag Chain Standards: Certified for dynamic flex applications
• Quality Standards: German engineering and manufacturing
• Protection Standards: Industrial-grade environmental protection with IP67 rating

Benefits

• Pre-assembled construction eliminates field termination errors
• 90° angled design saves space and prevents cable interference
• PUR cable provides superior flexibility and chemical resistance for harsh environments
• Vibration-resistant design with union nut vibration protection
• Gold-plated contacts ensure long-term reliable connectivity
• Drag chain capability enables use in moving machinery applications
• Yellow cable color enhances visibility for safety and maintenance identification
• Resistance to oils and cooling lubricants for industrial environments
• Cable sleeves included for professional installation
• Plastic housings with good resistance against chemicals and oils
• Optimal combination of space-saving design and enhanced visibility
