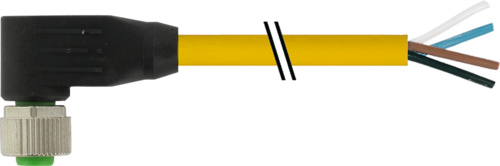

Murr M12 female 90°, A-code with cable, yellow, 4-pole, 3m

Product Overview

This M12 female (right-angle, A-coded) to open-ended wire assembly features a rugged 3 m yellow TPE jacket and precision-machined contacts, offering durable and space-saving signal transmission for industrial applications. Its high-flex design supports installation in drag chain systems and other dynamic environments where longevity and vibration resistance are key.

Key Features

· M12 90° female connector (A-coded), 4-pin design
· Pre-assembled with open-ended TPE cable, 4 × 18 AWG
· Right-angle configuration ideal for tight-space applications
· UL and CSA approved construction, CE compliant
· Vibration-resistant design with gold-plated contacts

Technical Specifications

· Cable: TPE, 4 × 0.82 mm² (18 AWG), Ø approx. 7.2 mm
· Length: 3 m
· Connector Housing: Zinc die-cast, matte nickel-plated
· Voltage Rating: 600 V (nominal), 4000 V (test)
· Current Rating: Max. 4 A per contact
· Temperature Range: –40…+105 °C (fixed), –20…+90 °C (flexing)
· Bend Radius: 10× Ø (fixed), 15× Ø (moving)
· Surge Voltage: 2.5 kV, material group I (IEC 60664-1)
· Ingress Protection: IP65, IP66K, IP67 when mated

Applications

· Signal wiring for field sensors and actuators
· Control panel and machine integration with space constraints
· Dynamic cable routing in robotics or drag chain systems
· Reliable industrial interconnects for OEM and retrofit projects

Compliance and Standards

· Connector complies with DIN EN 61076-2-101
· Cable UL Style 20626 / 10708
· CSA certified and CE marked
· Meets IEC 60664-1 material group I for insulation coordination
· RoHS compliant
