Product overview

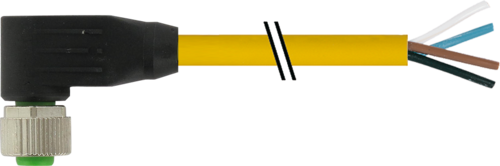

This right-angle (90°) M12 A‑coded female connector with a 2 m yellow TPE cable (4 × 18 AWG) offers robust, UL/CSA‑approved signal connectivity in industrial settings. Its flexible, oil‑ and chemical‑resistant TPE jacket ensures durability, while the right‑angle design optimises space‑restricted installations.
Key Features
· M12 90° female A‑coded connector, 4‑pole
· Pre‑assembled with open‑ended TPE cable, 4 × 18 AWG
· Yellow jacket enhances visibility in control panels
· UL/CSA‑approved construction for safe, compliant usage
Technical Specifications
· Cable Type: TPE, 4 conductors × 18 AWG (0.82 mm²), yellow jacket
· Length: 2 m
· Voltage Rating: 600 V (nominal)
· Compliance: UL/CSA‑approved for industrial applications
· Connector Orientation: Right‑angle M12 A‑coded female
Applications
· Industrial sensor and actuator signal wiring
· Compact machinery and control cabinet installations
· Flexible connections in dynamic or confined routing paths
· OEM, retrofit, and automated system applications
Installation Notes
· Ensure proper hand‑tightening of the M12 connector to maintain seal integrity
· Avoid excessive bending stress near the connector junction
· Use strain relief when routing through moving or vibration‑heavy conduits
Download existing graphical data for this product:
· Product Datasheet
| IP Rating / Detailed | IP65 |
| Tariff | 85444290 |
| GTIN | 4048880000000.0 |
| ETIM | EC001855 |
| Temperature: Operating Min | -30.0°C |
| Temperature: Operating Max | 85.0°C |
| Stripping Length (mm) | 20.0mm |
| Thread | M12 |
| Tightening Torque | 0 |
| Nominal Voltage | 600.0 |
| Mounting Type | inserted |
| Current load capacity | to |
| Current Rating / Rated Current | 4.0 |
| Packaging size / unit | 1 |
| Material: Housing / Grip | group |
| Material: Jacket / Cover Nut | TPE |
| Material: Wire Insulation | PVC |
| Communication | M12 |
| Stranding | 1 |
| Wire arrangement | brown |
| Bending radius (fixed) | 10.0 |
| Bending radius (dynamic) | 15.0 |
| Voltage Frequency Range | withstand |
| Operating Voltage Max | 250.0 |
