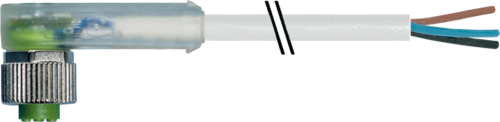

Murr M12 female 90°, A-code with cable, grey, 3-pole, 5m

Product Overview

The Murrelektronik M12 female 90° angled connector is a pre-assembled cordset with integrated LED status indication for industrial sensor and actuator applications requiring space-saving design with visual feedback. This A-coded connector features a 5-meter PVC cable with 3x0.34mm² conductors in gray color and dual LED indicators, providing reliable connectivity with visual status monitoring in space-constrained industrial automation environments.

Key Features

• M12 female 90° angled connector with A-coding and LED status indication
• 5-meter PVC cable for standard industrial applications
• 3x0.34mm² conductors for signal transmission
• Dual LED indicators (2× LED PNP) for visual status monitoring
• UL/CSA certification
• Gold-plated contacts for optimum conductivity
• Gray cable jacket for professional appearance and easy identification
• Open-ended wire termination for flexible connections

Technical Specifications

• Article Number: 7000-12381-2130500

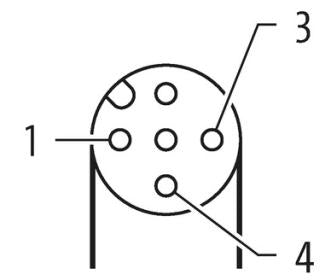

• Connector Type: M12 female 90° angled, A-coded
• Cable Length: 5 meters
• Conductor Specification: 3x0.34mm² PVC cable
• Voltage Rating: Up to 250V AC/DC
• Current Rating: 4A maximum per contact
• Operating Temperature: -25°C to +80°C

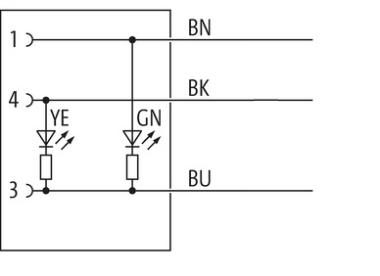

• LED Function: 2× LED (PNP) for status indication
• Cable Type: PVC (Polyvinyl Chloride), gray
• Protection Rating: IP67 when mated

Applications

• Space-constrained sensor and actuator connections requiring visual status feedback
• Panel-mounted equipment requiring right-angle connectivity with LED monitoring
• Machine control signal transmission with visual diagnostic requirements
• Process control applications with limited clearance and status indication needs
• Factory automation sensor networks requiring visual connection status
• Standard industrial environments where LED indicators enhance maintenance

Standards and Compliance

• Certification: UL/CSA approved for North American markets
• Quality Standards: German engineering and manufacturing
• Protection Standards: Industrial-grade environmental protection with IP67 rating

Benefits

• Pre-assembled construction eliminates field termination errors
• 90° angled design saves space and prevents cable interference
• PVC cable provides cost-effective solution for standard applications
• LED indicators provide immediate visual status feedback for enhanced troubleshooting
• Gray cable color enhances professional appearance and cable identification
• Resistance to common industrial environments
• Plastic housings with good resistance against chemicals and oils

Download existing graphical data for this product:

• Data Sheet
