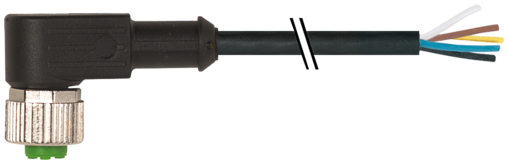

Murr M12 female 90°, A-code with cable, black, 5-pole, 20m

Product Overview

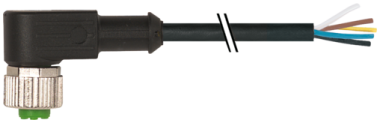

The Murrelektronik M12 female 90° angled connector is a pre-assembled cordset with 5-pole configuration for industrial sensor and actuator applications requiring space-saving design with maximum extended reach. This A-coded connector features a 20-meter PUR cable with 5x0.34mm² conductors and drag chain capability, providing reliable long-distance connectivity in space-constrained industrial automation environments.

Key Features

• M12 female 90° angled connector with A-coding and 5-pole configuration
• 20-meter PUR cable with drag chain capability for extended applications
• 5x0.34mm² conductors for maximum multi-signal transmission
• UL/CSA certification
• Gold-plated contacts for optimum conductivity
• Black cable jacket for professional appearance
• Open-ended wire termination for flexible connections

Technical Specifications

• Article Number: 7000-12361-6352000
• Connector Type: M12 female 90° angled, A-coded
• Cable Length: 20 meters
• Conductor Specification: 5x0.34mm² PUR cable
• Voltage Rating: Up to 125V DC
• Current Rating: 4A maximum per contact
• Operating Temperature: -40°C to +80°C
• Cable Type: PUR (Polyurethane), black with drag chain capability
• Protection Rating: IP67 when mated

Applications

• Extended reach sensor and actuator connections with maximum 5-pole signal capacity
• Large-scale panel-mounted equipment requiring right-angle connectivity
• Machine control signal transmission with maximum cable runs and full I/O capacity
• Large factory automation sensor networks requiring extended reach 5-wire connections

Standards and Compliance

• Certification: UL/CSA approved for North American markets
• Drag Chain Standards: Certified for dynamic flex applications
• Quality Standards: German engineering and manufacturing
• Protection Standards: Industrial-grade environmental protection with IP67 rating

Benefits

• Pre-assembled construction eliminates field termination errors
• 90° angled design saves space and prevents cable interference
• PUR cable provides superior flexibility and chemical resistance
• 5-pole configuration supports maximum signal requirements for M12 A-coded connections
• 20-meter length eliminates need for intermediate connections in extensive installations
• Drag chain capability enables use in large-scale moving machinery applications

Download existing graphical data for this product:

• Data Sheet
