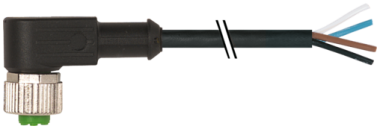

Murr M12 female 90°, A-code with cable, black, 4-pole, 10m

Product Overview

The Murrelektronik M12 female 90° angled connector is a pre-assembled cordset with 4-pole configuration for industrial sensor and actuator applications requiring space-saving design with extended reach. This A-coded connector features a 10-meter PVC cable with 4x0.34mm² conductors, providing reliable long-distance connectivity in space-constrained industrial automation environments.

Key Features

• M12 female 90° angled connector with A-coding and 4-pole configuration
• 10-meter PVC cable for extended reach applications
• 4x0.34mm² conductors for multi-signal transmission
• UL/CSA certification
• Gold-plated contacts for optimum conductivity
• Black cable jacket for professional appearance
• Open-ended wire termination for flexible connections

Technical Specifications

• Article Number: 7000-12341-6141000

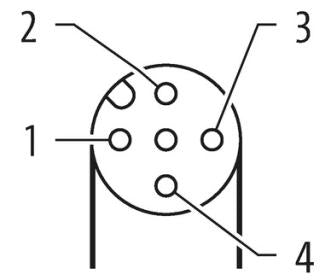

• Connector Type: M12 female 90° angled, A-coded
• Cable Length: 10 meters

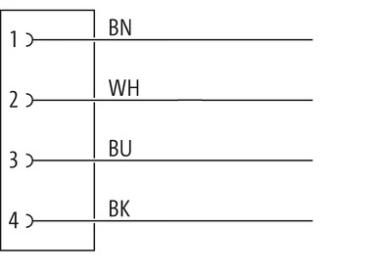

• Conductor Specification: 4x0.34mm² PVC cable
• Voltage Rating: Up to 250V AC/DC
• Current Rating: 4A maximum per contact
• Operating Temperature: -25°C to +80°C
• Protection Rating: IP65/IP66K/IP67 when mated

Applications

• Extended reach space-constrained sensor and actuator connections with 4-pole requirements
• Panel-mounted equipment requiring right-angle connectivity with multiple signal lines
• Machine control signal transmission in tight spaces with extended cable runs
• Factory automation sensor networks requiring extended reach 4-wire connections

Standards and Compliance

• Certification: UL/CSA approved for North American markets
• Quality Standards: German engineering and manufacturing
• Protection Standards: Industrial-grade environmental protection with IP65/IP66K/IP67 rating

Benefits

• Pre-assembled construction eliminates field termination errors
• 90° angled design saves space and prevents cable interference
• PVC cable provides cost-effective solution for extended applications
• 4-pole configuration supports expanded signal requirements
• 10-meter length reduces need for intermediate connections
• Zinc die-cast coupling nut for enhanced durability
• Silicone-free construction for sensitive applications

Download existing graphical data for this product:

• Data Sheet
