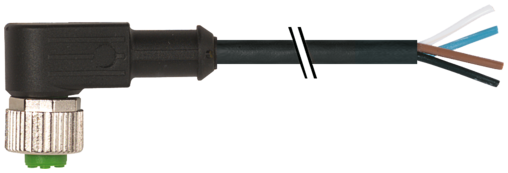

Murr M12 female 90°, A-code with cable, black, 4-pole, 0.3m

Product Overview

The Murrelektronik M12 female 90° angled connector is a pre-assembled cordset with 4-pole configuration designed for compact industrial sensor and actuator applications requiring space-saving design with short cable runs. This A-coded connector features a 30cm (0.3m) PUR cable with 4x0.34mm² conductors, providing reliable connectivity in space-constrained industrial automation environments where minimal cable length is required.

Key Features

• M12 female 90° angled connector with A-coding and 4-pole configuration
• 30cm (0.3m) PUR cable with drag chain capability for compact applications
• 4x0.34mm² conductors for multi-signal transmission
• UL/CSA certification
• Gold-plated contacts for optimum conductivity
• Black cable jacket for professional appearance
• Open-ended wire termination for flexible connections

Technical Specifications

• Article Number: 7000-12341-6340030

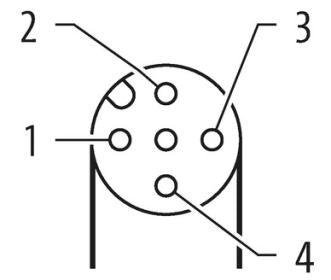

• Connector Type: M12 female 90° angled, A-coded
• Cable Length: 30cm (0.3 meters)

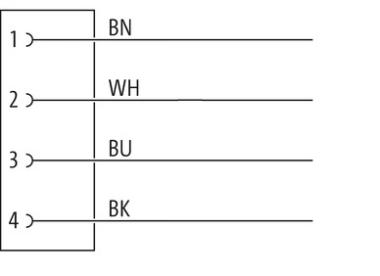

• Conductor Specification: 4x0.34mm² PUR cable
• Voltage Rating: Up to 250V AC/DC
• Current Rating: 4A maximum per contact
• Operating Temperature: -40°C to +80°C
• Cable Type: PUR (Polyurethane), black with drag chain capability
• Protection Rating: IP67 when mated

Applications

• Compact sensor and actuator connections with 4-pole requirements and minimal cable runs
• Panel-mounted equipment requiring right-angle connectivity with short distances
• Machine control signal transmission in tight spaces with minimal cable length
• Close-proximity connections between sensors and control panels
• Space-critical applications where cable management is essential

Standards and Compliance

• Certification: UL/CSA approved for North American markets
• Drag Chain Standards: Certified for dynamic flex applications
• Quality Standards: German engineering and manufacturing
• Protection Standards: Industrial-grade environmental protection with IP67 rating

Benefits

• Pre-assembled construction eliminates field termination errors
• 90° angled design saves space and prevents cable interference
• PUR cable provides superior flexibility and chemical resistance
• 4-pole configuration supports expanded signal requirements
• Ultra-short 30cm length ideal for compact installations
• Drag chain capability for limited dynamic applications
• Resistance to oils and cooling lubricants for industrial environments

Download existing graphical data for this product:

• Data Sheet
