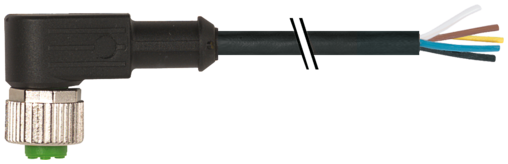

Murr M12 female 90°, A-code with cable, 5-pole, black, 10m

Product Overview

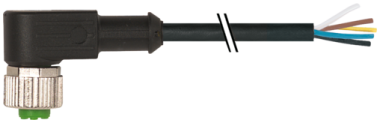

The Murrelektronik M12 female 90° angled connector is a pre-assembled cordset with 5-pole configuration designed for industrial sensor and actuator applications requiring space-saving design with extended reach and dynamic flexibility. This A-coded connector features a 10-meter PUR cable with 5x0.34mm² conductors and drag chain capability, providing reliable long-distance connectivity in space-constrained industrial automation environments requiring maximum signal transmission capacity.

Key Features

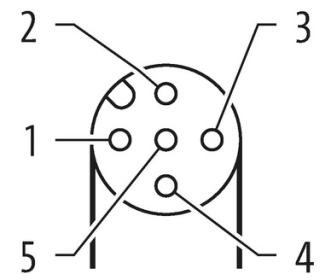

• M12 female 90° angled connector with A-coding and 5-pole configuration
• 10-meter PUR cable with drag chain capability for dynamic applications
• 5x0.34mm² conductors for maximum multi-signal transmission over longer distances
• UL/CSA certification
• Gold-plated contacts for optimum conductivity
• Black cable jacket for professional appearance
• Open-ended wire termination for flexible connections

Technical Specifications

• Article Number: 7000-12361-6351000
• Connector Type: M12 female 90° angled, A-coded
• Cable Length: 10 meters

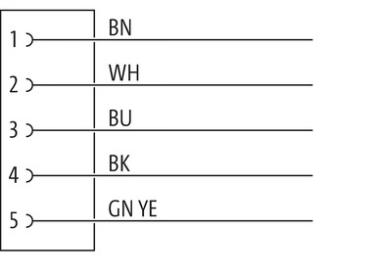

• Conductor Specification: 5x0.34mm² PUR cable
• Voltage Rating: Up to 125V DC
• Current Rating: 4A maximum per contact
• Operating Temperature: -40°C to +80°C
• Cable Type: PUR (Polyurethane), black with drag chain capability
• Protection Rating: IP67 when mated

Applications

• Extended reach space-constrained sensor and actuator connections with maximum 5-pole signal requirements
• Panel-mounted equipment requiring right-angle connectivity across larger systems with comprehensive signal lines
• Machine control signal transmission in tight spaces with extended cable runs and full I/O capacity
• Process control applications with limited clearance and long-distance maximum signal needs
• Factory automation sensor networks requiring extended reach complete 5-wire connections
• Robotics and automated equipment where space efficiency, extended reach, and maximum signals are critical
• Moving machinery applications requiring drag chain compatibility with maximum signal capacity

Standards and Compliance

• Certification: UL/CSA approved for North American markets
• Drag Chain Standards: Certified for dynamic flex applications
• Quality Standards: German engineering and manufacturing
• Protection Standards: Industrial-grade environmental protection with IP67 rating

Benefits

• Pre-assembled construction eliminates field termination errors
• 90° angled design saves space and prevents cable interference
• PUR cable provides superior flexibility and chemical resistance for harsh environments
• 5-pole configuration supports maximum signal requirements for M12 A-coded connections
• 10-meter length reduces need for intermediate connections in extensive installations
• Drag chain capability enables use in moving machinery applications
• Resistance to oils and cooling lubricants for industrial environments
• Optimal combination of space-saving design, extended reach capability, and maximum signal capacity

Download existing graphical data for this product:

• Data Sheet
