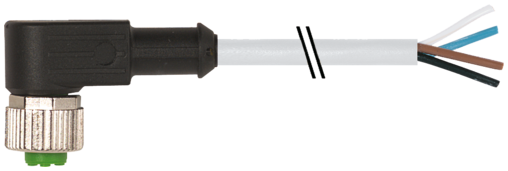

Murr M12 female 90°, A-code with cable, 4-pole, grey, 5m

Product Overview

The Murrelektronik M12 female 90° angled connector is a pre-assembled cordset designed for industrial sensor and actuator connectivity applications where space constraints require a right-angle connection. This A-coded signal connector features a 5-meter PVC cable with 3x0.34mm² conductors in gray color, terminated with open-ended wires for direct connection to control systems. Rated for signal applications with UL/CSA certification, it provides reliable connectivity in space-constrained industrial automation environments.

Key Features

• M12 female 90° angled connector with A-coding for space-constrained signal applications
• 5-meter PVC cable for standard industrial applications
• 3x0.34mm² conductors optimized for signal transmission
• UL/CSA certification for North American applications
• Gold-plated contacts ensuring optimum conductivity
• Gray cable jacket for professional appearance
• Open-ended wire termination for flexible connections
• 100% tested during manufacturing process for highest quality and reliability

Technical Specifications

• Article Number: 7000-12301-2130500
• Connector Type: M12 female 90° angled, A-coded
• Cable Length: 5 meters
• Conductor Specification: 3x0.34mm² PVC cable
• Voltage Rating: Up to 250V AC
• Current Rating: 4A maximum
• Operating Temperature: -25°C to +80°C
• Cable Type: PVC (Polyvinyl Chloride), gray
• Contact Material: Gold-plated for optimum conductivity
• Protection Rating: IP67 when mated

Applications

• Space-constrained industrial sensor and actuator signal connections
• Panel-mounted equipment requiring right-angle connectivity
• Machine control signal transmission in tight spaces
• Process control applications with limited clearance
• Factory automation sensor networks in compact installations
• Robotics and automated equipment where space efficiency is critical
• Conveyor systems and material handling equipment with space constraints

Standards and Compliance

• Certification: UL/CSA approved for North American markets
• Quality Standards: German engineering and manufacturing
• Protection Standards: Industrial-grade environmental protection with IP67 rating

Benefits

• Pre-assembled construction eliminates field termination errors
• 90° angled design saves space and prevents cable interference
• PVC cable provides cost-effective solution for standard applications
• Vibration-resistant design with union nut vibration protection
• Gold-plated contacts ensure long-term reliable connectivity
• Gray cable color for professional appearance and easy identification
• Resistance to common industrial environments
• Plastic housings with good resistance against chemicals and oils
• Optimal combination of space-saving design and reliable performance

Download existing graphical data for this product:

• Data Sheet
