Product Overview
The Murrelektronik M12 female straight connector is a pre-assembled cordset designed for industrial sensor and actuator connectivity applications requiring socket-type connections. This A-coded signal connector features a 5-meter PVC cable with 4x0.34mm² conductors, terminated with open-ended wires for direct connection to control systems. Rated for signal applications with UL/CSA certification and distinctive yellow cable jacket, it provides reliable connectivity in industrial automation environments where visual identification is important.
Key Features
Technical Specifications
Applications
Standards and Compliance
Benefits
Download existing graphical data for this product:
IP Rating / Detailed | IP65 |
Tariff | 85444290 |
GTIN | 4048880000000.0 |
ETIM | EC001855 |
Temperature: Operating Min | -30.0°C |
Temperature: Operating Max | 85.0°C |
Stripping Length (mm) | 20.0mm |
Thread | M12 |
Tightening Torque | 0 |
Nominal Voltage | 300.0 |
Interface | no |
Mounting Type | inserted |
Current load capacity | to |
Current Rating / Rated Current | 4.0 |
Packaging size / unit | 1 |
Material: Housing / Grip | contact |
Material: Jacket / Cover Nut | PVC |
Material: Sensing Surface / Contacts | gold |
Material: Wire Insulation | PVC |
Material: Screw / connection | Zinc |
Cable Type | 1.0 |
Communication | M12 |
Stranding | 1 |

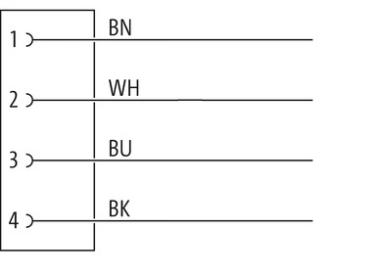

Wire arrangement | brown |
Bending radius (fixed) | 5.0 |
Bending radius (dynamic) | 10.0 |
Voltage Frequency Range | withstand |
Operating Voltage Max | 250.0 |
