Murr M12 female 0°, straight, 8-pole, grey, 5m

Product Overview The Murrelektronik M12 female straight connector is a pre-assembled cordset designed for reliable signal transmission in industrial automation applications. This A-coded connector features an 8-pole configuration with a 5-meter PUR cable and open-ended wires, providing robust connectivity in demanding industrial environments with excellent chemical and oil resistance.

Key Features

• M12 female straight connector with A-coding for standardized pin assignment
• 5-meter PUR cable with drag chain compatibility for dynamic applications
• 8-pole configuration with 0.25mm² conductors for comprehensive signal transmission
• UL/CSA certification for North American markets
• IP65/IP67 protection rating for dust and water resistance
• Gray cable jacket for professional appearance and easy identification
• Open-ended wire termination for flexible connections
• Zinc die-cast construction with nickel-plated lock for durability

Technical Specifications

• Article Number: 7000-17041-2920500

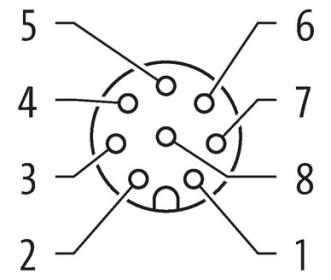

• Connector Type: M12 female straight (0°), A-coded
• Cable Length: 5 meters (16.4 feet)

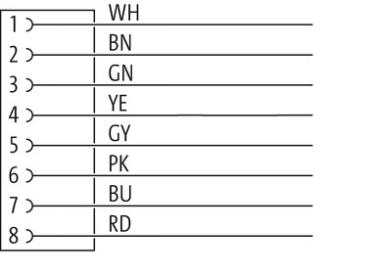

• Conductor Specification: 8x0.25mm² (8x#24 AWG) PUR cable
• Voltage Rating: 30V AC/DC maximum
• Current Rating: Standard industrial signal levels
• Operating Temperature: -25°C to +85°C ambient air temperature
• Cable Type: PUR (Polyurethane), gray with drag chain compatibility
• Protection Rating: IP65/IP67 when properly installed
• Weight: Approximately 1.10 lbs

Applications

• Sensor connections requiring reliable 8-pole signal transmission
• Industrial automation systems with standard M12 A-coded interfaces
• Machine control applications requiring drag chain compatible cables
• Process control equipment with environmental protection requirements
• Factory automation networks requiring robust connectivity
• Dynamic applications with repetitive motion requirements

Standards and Compliance

• Certification: UL/CSA approved for industrial applications
• Compliance Standards: EN 61076-2-101 standard
• Quality Standards: German engineering and manufacturing
• Environmental Classifications: eClass 27279218, Customs tariff 85444290

Benefits

• Pre-assembled construction eliminates field termination errors
• PUR cable construction provides superior chemical and oil resistance
• Drag chain compatibility ensures reliable performance in dynamic applications
• Environmentally conscious materials (CFC-free, cadmium-free, silicone-free, lead-free)
• Copper conductors ensure reliable signal transmission
• Plastic housings with good resistance against chemicals and oils
• Resistance to aggressive media should be individually tested for specific applications

Downloads

• Product Data Sheet
