Murr M12 female 0°, A-code with cable, 12-pole, grey, 10m

Product Overview

The Murrelektronik M12 female straight connector provides reliable signal transmission for advanced industrial automation applications requiring high pin count connectivity. This A-coded connector features a 12-pole configuration with a 10-meter PUR cable and open-ended wires, delivering robust connectivity for complex signal transmission applications with superior chemical resistance.

Key Features

• M12 female straight connector with A-coding for standardized pin assignment
• 12-pole configuration for comprehensive multi-signal transmission
• 10-meter PUR cable with drag chain compatibility
• 12x0.25mm² conductors for reliable signal transmission
• UL/CSA certification for North American markets
• Gray cable jacket for professional appearance
• IP65/IP66K/IP67 protection rating for environmental protection

Technical Specifications

• Article Number: 7000-19041-3011000
• Connector Type: M12 female straight (0°), A-coded

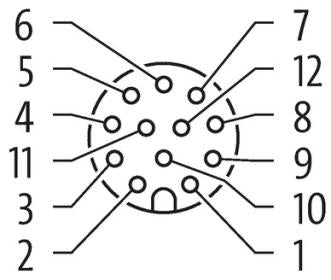

• Number of Poles: 12-pole configuration
• Cable Length: 10 meters (32.8 feet)

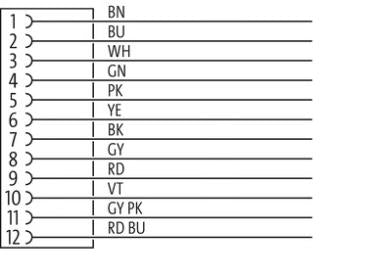

• Conductor Specification: 12x0.25mm² PUR cable
• Voltage Rating: Standard industrial signal voltages
• Cable Type: PUR (Polyurethane), gray with drag chain compatibility
• Protection Rating: IP65/IP66K/IP67 when properly installed
• Wire Gauge: 12 x 0.25mm² conductors

Applications

• Advanced sensor connections requiring multiple signal channels
• Industrial automation systems with high pin count M12 A-coded interfaces
• Complex machine control applications requiring comprehensive signal transmission
• Process control equipment with multiple input/output requirements
• Factory automation networks requiring high-density signal connectivity
• Dynamic applications with repetitive motion requiring drag chain compatibility

Standards and Compliance

• Certification: UL/CSA approved for industrial applications
• Quality Standards: German engineering and manufacturing
• Environmental Protection: IP65/IP66K/IP67 rating for harsh industrial environments

Benefits

• 12-pole configuration provides comprehensive signal transmission capability
• PUR cable construction provides superior chemical and oil resistance
• Drag chain compatibility ensures reliable performance in dynamic applications
• Extended 10-meter length suitable for distributed installations
• Gray cable color enhances professional appearance and cable identification
• Plastic housing provides good resistance against chemicals and oils

Downloads

• Product Data Sheet
