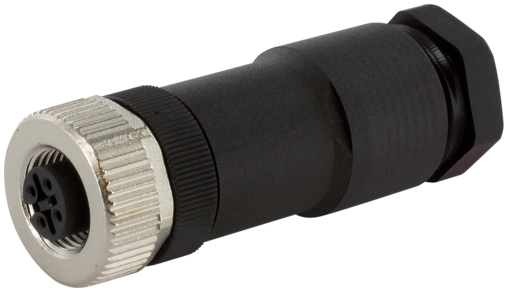

Murr M12 female 0°, A-code, screw, 4-pole, cable Ø 8 - 10mm

Product Overview

The Murrelektronik M12 female straight field-wireable connector features enhanced screw terminal technology for industrial sensor and actuator systems requiring secure field termination with socket configuration. This A-coded connector accommodates 4-pole configurations with enhanced wire cross-sections up to 1.5mm² and larger cable diameters from 8 to 10mm, providing heavy-duty socket connections in industrial automation environments where field assembly with robust cabling is essential.

Key Features

• M12 female 0° straight connector with A-coding and 4-pole configuration
• Enhanced screw terminal technology for secure wire connections
• Enhanced wire cross-section compatibility: up to 1.5mm²
• Large cable diameter range: 8 to 10mm
• Screw terminals designed for reliable wire contact and retention with heavy conductors
• Robust strain relief system for large cable protection
• Operating voltage suitable for industrial signal applications
• Durable plastic housing with superior chemical and oil resistance
• Field-wireable design for on-site installation flexibility
• IP67 protection rating when properly assembled

Technical Specifications

• Article Number: 7000-12945-0000000
• Connector Type: M12 female 0° straight, A-coded, field-wireable

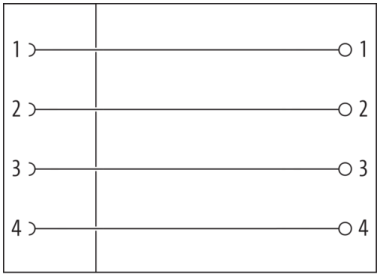

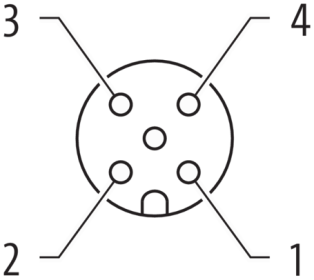

• Pole Configuration: 4-pole
• Connection Method: Screw terminals
• Wire Cross-Section: Maximum 1.5mm²
• Cable Diameter: 8 to 10mm
• Operating Voltage: Industrial signal voltage range
• Operating Temperature: Standard industrial range
• Protection Rating: IP67 when properly assembled
• Housing Material: High-resistance plastic with excellent chemical resistance

Applications

• Field installation of sensor and actuator socket connections requiring 4-pole signal capacity with heavy-duty conductors
• Industrial automation systems with robust control wiring requiring on-site female assembly
• Signal receiving applications where reliable field termination with large cable sizes is essential
• Heavy-duty maintenance and repair applications requiring secure socket replacement
• Control panel connections with multi-signal socket requirements using large gauge wires
• Applications where pre-assembled female cordsets are impractical for heavy-duty wiring
• High-power measurement systems requiring reliable field socket connections
• Process control systems requiring dependable signal reception points with enhanced capacity

Standards and Compliance

• Protection Standards: IP67 rated for industrial environments
• Quality Standards: German engineering and manufacturing
• Performance Standards: Designed for harsh industrial conditions with heavy-duty capability

Benefits

• Enhanced wire cross-section capacity up to 1.5mm² for high-current applications
• Large cable diameter range accommodates heavy-duty industrial cables up to 10mm
• 4-pole socket configuration provides reliable signal transmission capability
• Field-wireable configuration eliminates need for pre-assembled heavy-duty female cordsets
• A-coding ensures proper mating with compatible male connectors
• Excellent resistance against chemicals, oils, lubricants, and aggressive media
• Robust plastic housing withstands demanding industrial environments
• IP67 protection ensures reliable performance in harsh environmental conditions
• Cost-effective solution for heavy-duty field socket termination requirements
• Easy field installation with standard screw terminal connections
• Superior current handling capability for high-performance applications
• Optimized for large cable installations requiring maximum reliability

Downloads:

• Product Data Sheet
