Murr M12 Adaptor on rear of MSUD valve plug, 5-pole

Product Overview

This M12 to MSUD valve plug adapter (SKU: 7000-41441-0000000) features a 5-pole male M12 rear-entry connector converting to an MSUD valve plug Form A (18mm) specifically designed for pressure switch applications in industrial automation systems. The adapter operates at 24V DC ±25% and includes integrated dual-color LED indicators (yellow/green) for comprehensive status monitoring of pressure switch operations.

Connector Configuration:

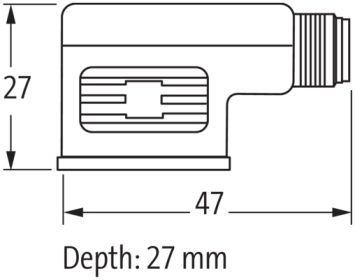

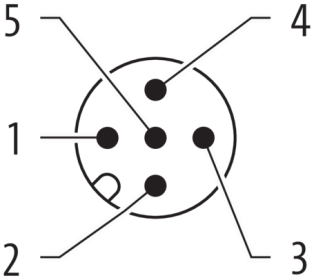

• Input: M12, 5-pole, rear entry, A-coded (male)
• Output: MSUD valve plug Form A, 18mm diameter
• Voltage Rating: 24V DC ±25%
• Protection: IP67 when mated
• Housing: Impact-resistant plastic

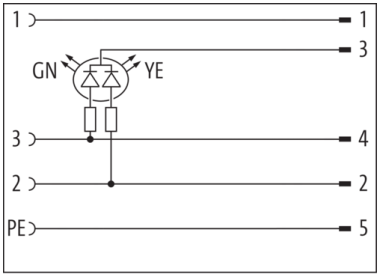

• LED Indicators: Yellow/Green dual-color status indication

Pressure Switch Adapter Design:

• Configuration: M12 male to MSUD valve plug conversion
• Topology: Rear-entry M12 connection to pressure switch interface
• Signal conversion: M12 sensor signals to pressure switch monitoring
• Application: Specifically engineered for pressure switch applications
• Installation: Rear-mounted M12 connection for optimal cable routing
• LED Status: Dual-color visual indication for pressure monitoring

Electrical Characteristics:

• Operating voltage: 24V DC ±25%
• Current rating: Optimized for pressure switch applications
• LED function: Yellow/Green dual-color status indicators
• Number of poles: 5-pole configuration for enhanced functionality
• Contact material: Nickel-plated contacts

Environmental Performance:

• Operating temperature: -25°C to +85°C
• Protection rating: IP67 (when mated)
• Chemical resistance: Good resistance to chemicals and oils
• Media compatibility: Suitable for industrial pressure applications
• Individual testing recommended for aggressive media

Material & Construction:

• Housing: Impact-resistant plastic construction
• Contact plating: Nickel-plated for corrosion resistance
• Valve interface: MSUD Form A (18mm) standard
• Connection type: Rear-entry for improved cable management
• Material compliance: RoHS compliant

Applications

Specifically designed for pressure switch monitoring applications in industrial automation systems. Ideal for converting M12 control signals to standard MSUD valve plug connections for pressure switches in pneumatic and hydraulic systems. Perfect for process control, manufacturing automation, and fluid monitoring applications where reliable pressure switch connectivity with comprehensive dual-color status indication and rear cable entry flexibility are required.

Download existing graphical data for this product:

Product Datasheet
