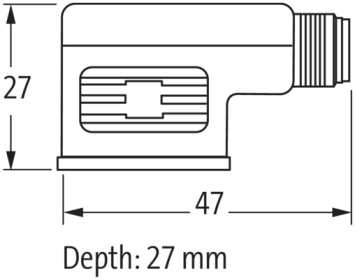

Murr M12 Adaptor on rear of MSUD valve plug, 3-pole

Product Overview

This M12 to MSUD valve plug adapter (SKU: 7000-41421-0000000) features a 3-pole male M12 rear-entry connector converting to an MSUD valve plug Form A (18mm) for reliable connection to solenoid valves in industrial automation applications. The adapter operates at 24V AC ±20% / DC ±25% and includes integrated LED status indication and suppression circuitry for valve control applications.

Connector Configuration:

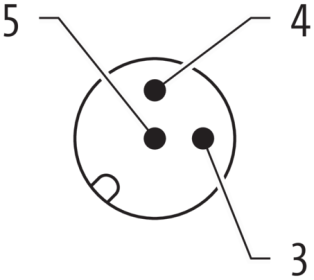

• Input: M12, 3-pole, rear entry, A-coded (male)
• Output: MSUD valve plug Form A, 18mm diameter
• Voltage Rating: 24V AC ±20% / DC ±25%
• Protection: IP67 when mated
• Housing: Impact-resistant plastic
• LED Indicators: Status indication with suppression

Rear-Entry Valve Adapter Design:

• Configuration: M12 male to MSUD valve plug conversion
• Topology: Rear-entry M12 connection to standard valve interface
• Signal conversion: M12 sensor/control signals to valve actuation
• Installation: Rear-mounted M12 connection for flexible routing
• LED Status: Visual indication of valve state and power

Electrical Characteristics:

• Operating voltage: 24V AC ±20% / DC ±25%
• Current rating: Suitable for valve solenoid applications
• LED function: Integrated status indication
• Suppression: Built-in voltage suppression circuitry
• Number of poles: 3-pole configuration
• Contact material: Nickel-plated contacts

Environmental Performance:

• Operating temperature: -25°C to +85°C
• Protection rating: IP67 (when mated)
• Chemical resistance: Good resistance to chemicals and oils
• Media compatibility: Suitable for industrial valve applications

Material & Construction:

• Housing: Impact-resistant plastic construction
• Contact plating: Nickel-plated for corrosion resistance
• Valve interface: MSUD Form A (18mm) standard
• Connection type: Rear-entry for improved cable management
• Material compliance: RoHS compliant

Applications

Designed for industrial automation valve control applications requiring rear-entry M12 connectivity. Ideal for converting M12 control signals to standard MSUD valve plug connections for pneumatic and hydraulic solenoid valves where rear cable entry provides better installation flexibility. Perfect for process control systems, manufacturing automation, and fluid control applications with space constraints or specific routing requirements.
