Murr I/O Module, y-wiring, 4 digital inputs, 4x M12, 0.2A

Product Overview

The Murrelektronik MASI67 I/O Module is a compact field installation module featuring 4 digital inputs designed for AS-Interface applications. This potted I/O module provides optimized installation solutions for mechanical engineering applications, offering exceptional resistance to mechanical influences such as vibration and shocks while maintaining IP67 environmental protection.

Key Features

• 4 digital inputs with M12 connections
• AS-Interface communication capability
• Fully potted housing construction for mechanical protection
• IP67 protection rating for harsh industrial environments
• DIN-rail mountable or screw fixing installation options
• Compact design optimized for field installation

Technical Specifications

• Model: MASI67 I/O Module
• Article Number: 56413
• I/O Configuration: 4 digital inputs (DI4)
• Current Rating: 0.2 A (AB)
• Protection Rating: IP67
• Operating Temperature: -20°C to +60°C
• Storage Temperature: -20°C to +70°C

Electrical Characteristics

• Input Type: Digital inputs for 3-wire sensors or mechanical switches, PNP
• Current Capacity: 0.2 A per input
• Bus Voltage: AS-Interface 26.5 to 31.6V DC
• Addressing: Via built-in address port or master
• Address Range: AS-Interface standard addressing
• Profile Code: AS-Interface profile compliance

Connection Specifications

• I/O Ports: 4x M12 female connectors
• Connection Type: AS-Interface profile cable (black)
• Mounting Method: DIN-rail mountable (EN 60715) or screw fixing
• Housing Construction: Fully potted for enhanced durability

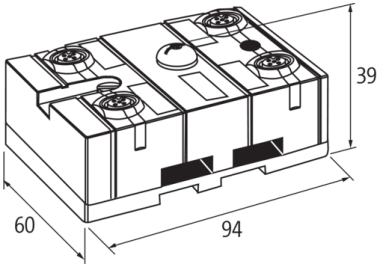

• Dimensions (H x W x D): Compact field installation format

Applications

• Mechanical engineering field installations
• AS-Interface sensor networks
• Industrial automation systems requiring vibration resistance
• Harsh environment applications needing IP67 protection
• Manufacturing systems with 3-wire sensor requirements
• Process control installations requiring reliable digital input monitoring

Standards and Compliance

• Protection Standards: IP67 environmental protection
• AS-Interface Standards: Compatible with AS-Interface specifications
• Mounting Standards: DIN-rail EN 60715 compatibility
• Quality Standards: Murrelektronik industrial automation quality

Benefits

• Exceptional resistance to vibration and mechanical shock
• Fully potted construction ensures long-term reliability
• Compact design saves installation space
• IP67 protection suitable for harsh industrial environments
• AS-Interface compatibility enables simple network integration
• Flexible mounting options (DIN-rail or screw fixing)

Download existing graphical data for this product:

• Product Specification Sheet
