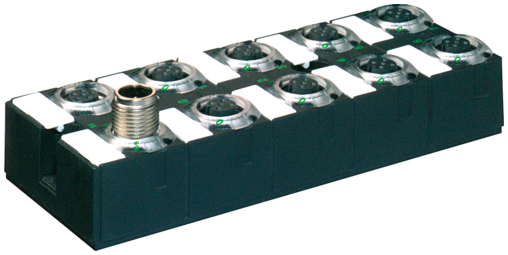

Murr I/O Extension module, 16 digital inputs, PNP, 8 × M12

Product Overview

The Murrelektronik CUBE67 I/O Extension Module is a 16 digital input expansion module designed for the CUBE67 modular fieldbus system. This IP67-rated module features fully potted housing construction and provides 8x M12 connections for PNP digital inputs, enabling flexible expansion of distributed I/O systems in harsh industrial environments.

Key Features

• 16 digital inputs (DI16) with PNP configuration
• 8x M12 connections for sensor connectivity
• IP67 protection rating for harsh industrial environments
• Fully potted housing construction for enhanced durability
• Modular expansion capability for CUBE67 systems
• PNP input type for 3-wire sensor compatibility

Technical Specifications

• Model: CUBE67 I/O Extension Module
• Article Number: 56603
• I/O Configuration: 16 digital inputs (DI16 (E) PNP)
• Connection Type: 8x M12 female connectors
• Input Type: PNP digital inputs
• Protection Rating: IP67

Connection Specifications

• I/O Ports: 8x M12 female connectors
• Input Configuration: 16 digital inputs via 8 M12 connections (2 inputs per connector)
• Signal Type: PNP (3-wire sensor compatible)
• Housing Construction: Fully potted for environmental protection
• Integration: CUBE67 system compatibility

Applications

• CUBE67 modular fieldbus system expansion
• Industrial automation systems requiring additional digital inputs
• Harsh environment applications needing IP67 protection
• Manufacturing and process control sensor interfacing
• Machine control systems with PNP sensor requirements
• Distributed I/O installations requiring modular expansion

Standards and Compliance

• Protection Standards: IP67 environmental protection rating
• Input Standards: PNP input compatibility (3-wire sensors)
• System Standards: CUBE67 modular system compatibility
• Quality Standards: Murrelektronik industrial automation quality

Benefits

• Modular design enables flexible system expansion
• IP67 rating ensures reliable operation in harsh industrial conditions
• Fully potted housing provides maximum environmental protection
• PNP input type compatible with standard 3-wire industrial sensors
• 8x M12 connections provide secure and reliable sensor interfacing
• Seamless integration with existing CUBE67 systems

Download existing graphical data for this product:

• Product Specification Sheet
