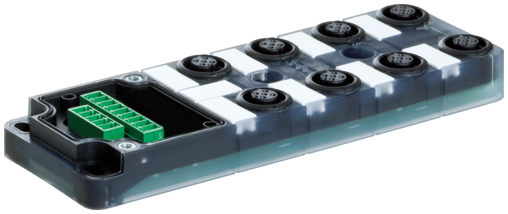

EXACT 12 distribution boxes offer solutions for an array of applications. Space-saving and maintenance-friendly, and can be installed in less than a quarter of the time. EXACT 12 from Murrelektronik with 4 single assignment M12 ports features a terminal style connection chamber with spring connection and integrated gland connection with 8.5-14mm sealing range. Both power and status indicators allow for easy monitoring of your machine's condition. Thanks to the convenient M12 threaded ports integrated into the robust housing and IP65/IP67 ingress protection.
IP Rating | IP65 / IP67 |
Tariff | 85369010 |
GTIN | 4048879054300 |
Flammability | Flame retardant |
Temperature: Operating / Dynamic | -20°C to 70°C |
Part Width (mm) | 50.2mm |
Part Length (mm) | 150mm |
Part Height (mm) | 17mm |
Packaging Size | 1 pc(s) |
Weight (g) | 120g |
Connection Type | Cap with 14 Poles (Type 1) / M12 Female with 4 Poles (Type 2) / 8XM12 |
Connection Style | Screw plug-in terminals |
Operating Voltage | 24 V |
Current Rating / Rated Current | 4 - 8 A |
Colour | Black |
