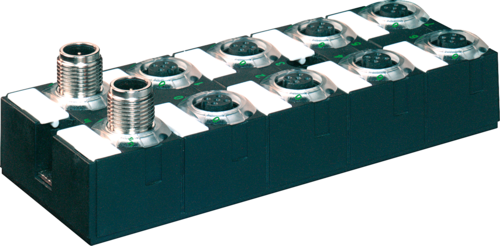

Murr Compact module, 16 multifunction channels, 8 x M12

Product Overview

The Murrelektronik CUBE67 I/O Compact Module is a 16 multifunction channel compact module designed for the CUBE67 modular fieldbus system. This IP67-rated module features fully potted housing construction and provides 8x M12 connections for digital inputs/outputs with 1.6 A capacity, enabling high-power applications and flexible I/O configuration in harsh industrial environments.

Key Features

• 16 multifunction channels (DIO16) with configurable inputs/outputs
• 8x M12 female, 5-pole A-coded connections for sensor and actuator interfacing
• 1.6 A current capacity per channel for high-power applications
• IP67 protection rating for harsh industrial environments
• Fully potted housing construction for enhanced durability
• Short-circuit and overload protection on all channels

Technical Specifications

• Model: CUBE67 I/O Compact Module
• Article Number: 56640
• I/O Configuration: 16 multifunction channels (DIO16 - 1.6 A (C))
• Connection Type: 8x M12 female, 5-pole, A-coded connectors
• Current Rating: 1.6 A per channel
• Protection Rating: IP67

Electrical Characteristics

• Sensor Supply: 24V DC (EN 61131-2), max 200 mA per M12 female port
• Actuator Supply: 24V DC (EN 61131-2) via system connection
• Current Consumption: Maximum 50 mA
• Input Filter: 1 ms response time
• Input Type: PNP (3-wire sensors or mechanical switches)
• System Connection: Max 2x4 A via internal system connection

Connection Specifications

• I/O Ports: 8x M12 female, 5-pole, A-coded connectors
• Mounting Method: 2-hole screw mounting

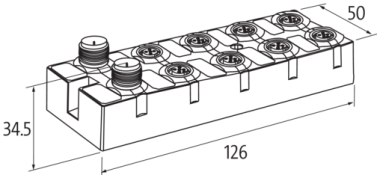

• Dimensions (H x W x D): 126 x 50 x 34.5 mm
• Housing Construction: Fully potted for environmental protection
• Operating Temperature: 0°C to +55°C
• Storage Temperature: -20°C to +75°C

Advanced Features

• Lamp Load: 30W capacity for lighting applications
• PIN 2: Input/output/diagnostic functionality
• PIN 4: Input/output functionality
• Terminating Resistor: Integrated into the module
• LED Display: Sensor supply (US) and actuator supply (UA) status indicators

Diagnostic Features

• Communication Status: Via LED indicators
• Diagnostic via LED: Per module and channel status indication
• Diagnostic via BUS: Per module and channel reporting
• Monitoring: Under voltage and no voltage detection
• Protection: Short circuit and overload protection with actuator warning

Applications

• CUBE67 modular fieldbus system expansion for high-power applications
• Industrial automation requiring higher current capacity (1.6 A)
• Manufacturing systems with high-power actuators and lighting loads
• Process control applications requiring robust I/O expansion
• Machine control systems with mixed high-power sensor/actuator requirements
• Applications requiring 30W lamp load capability

Standards and Compliance

• Protection Standards: IP67 environmental protection rating
• Supply Standards: EN 61131-2 voltage compliance
• Input Standards: PNP input compatibility (3-wire sensors)
• System Standards: CUBE67 modular system compatibility
• Quality Standards: Murrelektronik industrial automation quality

Benefits

• Higher current capacity (1.6 A) supports power-intensive applications
• 16 multifunction channels provide maximum flexibility in compact design
• IP67 rating ensures reliable operation in harsh industrial conditions
• Fully potted housing provides maximum environmental protection
• Integrated terminating resistor simplifies system configuration
• Comprehensive diagnostics enable proactive system monitoring
