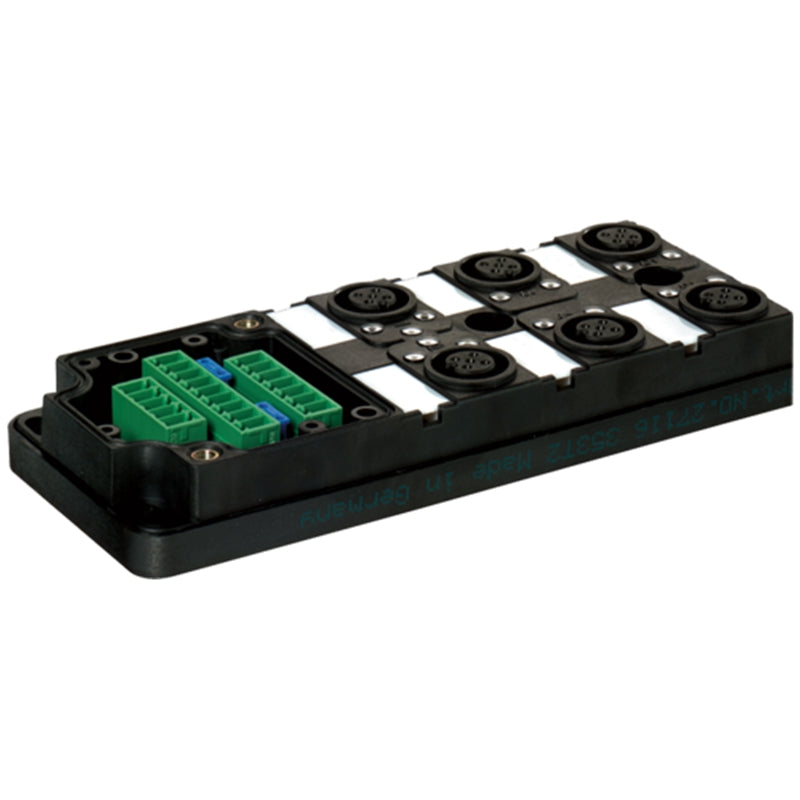

Murr Basic housing without cap, 6-way, 5-pole

Product Overview

The Murrelektronik MVP12 M12 Distribution System is a 6-port, 5-pole basic housing module designed for industrial field distribution applications. This plastic housing provides 6×M12 connections with potential separation capability, offering a reliable solution for distributing power and signals to sensors and actuators in demanding industrial environments.

Key Features

• 6×M12 ports with 5-pole configuration
• Basic housing without cap for flexible installation
• Potential separation capability for electrical isolation
• Plastic flame-retardant housing construction
• IP67 protection when properly connected
• LED status indication for power and signal monitoring

Technical Specifications

• Model: MVP12 M12 Distribution System
• Article Number: 27115
• Configuration: 6×M12, 5-pole
• Housing Type: Basic housing without cap
• Housing Material: Plastic, flame-retardant
• Protection Rating: IP67 (inserted and tightened per EN 60529)
• Temperature Range: -20°C to +80°C

Electrical Characteristics

• Operating Voltage: 24V DC
• Operating Current per Contact: Maximum 4A

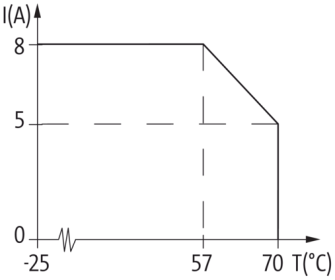

• Total Current: Maximum 2 × 8A
• Signal per Port: 2 signals

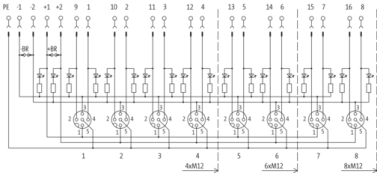

• Pin Configuration: PIN 1 (+), PIN 2 (NC/S2), PIN 3 (-), PIN 4 (NO/S1), PIN 5 (Earth)
• LED Indicators: Green (Power), Yellow (S1/S2)

Physical Specifications

• Dimensions (H × W × D): 124.5 × 50.2 × 17.2mm
• Port Locking: Screw thread M12 × 1mm
• Housing Material: Plastic, flame-retardant construction
• Mounting: Field-mountable distribution box design
• Connection Type: M12 threaded connections

Distribution Features

• Port Count: 6×M12 connections
• Pole Configuration: 5-pole per port
• Potential Separation: Electrical isolation capability
• Signal Distribution: 2 signals per port capability
• Status Monitoring: LED indicators for operational status
• Field Installation: Designed for industrial field environments

Installation Specifications

• Mounting: Field-mountable housing design
• Connection: M12 screw-threaded ports
• Sealing: Fully potted construction for durability
• Assembly: Can be separated for easy assembly and transport
• Environment: Industrial field distribution applications

Applications

• Industrial sensor and actuator distribution
• Field-level signal and power distribution
• Manufacturing automation systems
• Process control field connections
• Machine control sensor networks
• Industrial I/O distribution applications

Design Features

• Modular Design: Part of MVP12 distribution system family
• Robust Construction: Fully potted and sealed design
• Field-Friendly: Easy connection and disconnection
• Status Indication: Visual LED monitoring
• Flexible Installation: Basic housing for various mounting options

Standards and Compliance

• Protection Standard: IP67 per EN 60529
• Housing Material: Flame-retardant plastic construction
• Operating Environment: Industrial temperature range
• Quality: Murrelektronik industrial standards
• Reliability: Designed for demanding industrial applications

Benefits

• Simplifies field wiring and distribution
• Provides reliable sensor and actuator connections
• Offers potential separation for electrical safety
• Enables modular field installation approach
• Reduces installation time and complexity
• Provides visual status monitoring capability
