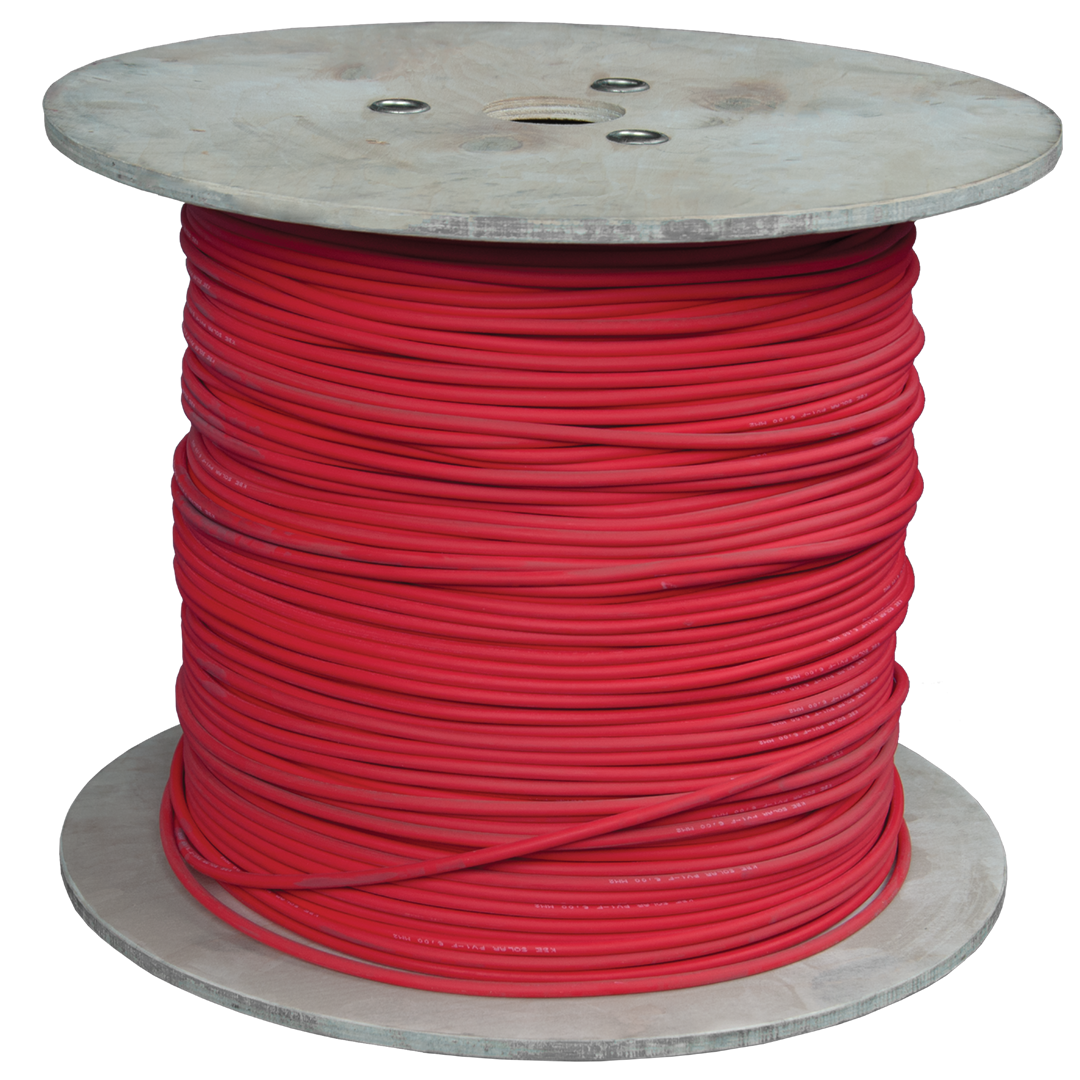

xThe KBE DB+ solar cable in red, 10mm², is a premium-quality photovoltaic cable engineered for durability, high current-carrying capacity, and compliance with global standards. Its triple certification ensures performance and safety in demanding solar power applications.
Key Features
- Triple certified to EN 50618, TÜV 2 PFG 1169, and UL 4703
- Highly flexible design for easy installation and routing
- UV, ozone, and weather-resistant sheath material
- Optimised for use in 1.5 kV DC photovoltaic systems
Specifications
x| Conductor Cross-Section | 10 mm² |
| Conductor Material | Tinned copper, flexible (Class 5) |
| Insulation Material | Electron-beam cross-linked polyolefin |
| Sheath Colour | Red |
| Rated DC Voltage | 1.5 kV DC |
| Test Voltage | 6.5 kV AC |
| Operating Temperature Range | -40°C to +120°C |
| UV Resistance | Yes (EN 50618 compliant) |
| Compliance Standards | EN 50618, TÜV 2 PFG 1169/08.07, UL 4703 |
| Flame Retardancy | IEC 60332-1-2 |
