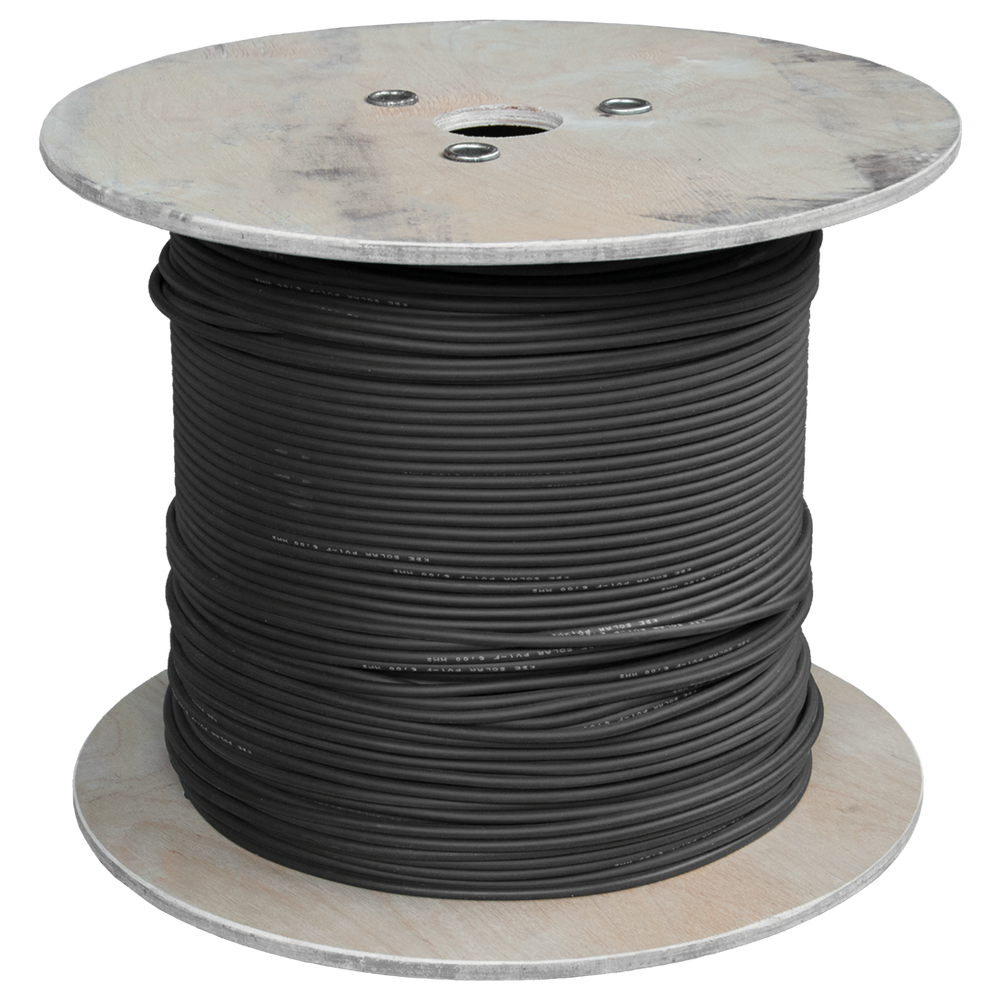

KBE Solar cable, DB+ (triple certified, EN50618), black, 10mm²
KBE Cable

KBE Solar cable, DB+ (triple certified, EN50618), black, 10mm²

SKU / Article No. 731000015060QUSW
Product Type Solar PV Cable
Back Order
💬 Ask an Expert - Technical Support Available

Product Description

The KBE Solar Cable DB+ is a premium-quality photovoltaic cable designed for safe and reliable solar power installations. Triple certified to EN50618 standards, it offers excellent UV resistance, mechanical robustness, and long-term durability in demanding outdoor environments.

Key Features

  • Triple certified for superior quality and safety (EN50618, TÜV, VDE)
  • Durable black sheath with high UV and weather resistance
  • Flexible fine-stranded copper conductor for ease of installation
  • Cross-linked polyethylene (XLPE) insulation for excellent thermal performance

Technical Specifications

Cross-sectional Area 10 mm²
Certifications Triple Certified (including EN50618)
Voltage Rating 1500V DC / 1000V AC
Conductor Material Tinned Copper
Insulation Material Electron-beam cross-linked polyethylene (XLPE)
Outer Sheath Material UV-resistant, weather-resistant, and flame-retardant compound
Temperature Range -40°C to +90°C (operational), up to +120°C (short circuit)
Flame Retardancy Complies with IEC 60332-1-2
Mechanical Properties High tensile strength and abrasion resistance
Weather Resistance Resistant to ozone, UV radiation, and moisture

Technical Documentation & Downloads

📄 Technical Documents

No documents currently available for this product.
