Description

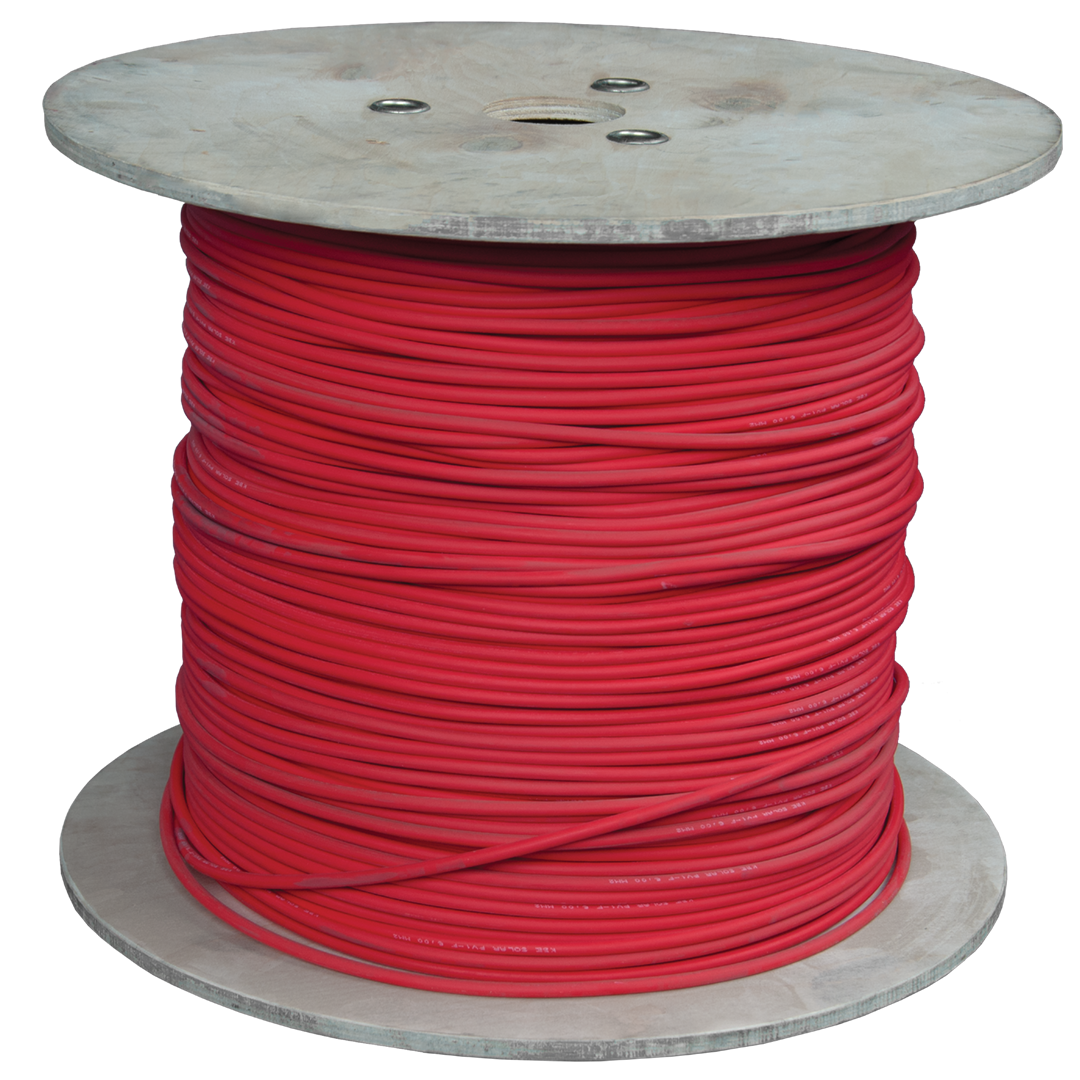

xKBE Solar Cable DB is a high-quality, durable cable designed for photovoltaic system installations. Certified to EN50618, this red, 2.5mm² cable offers excellent electrical performance, weather resistance, and long-term reliability for solar power applications.
Key Features
- Certified to EN50618 for solar PV applications
- Rated for continuous DC voltage use in solar systems
- Red UV-resistant sheath suitable for outdoor exposure
- Flexible stranded copper conductor for easy handling and installation
Specifications
x| Standard | Complies with EN 50618 (H1Z2Z2‑K) photovoltaic cable specifications |
| Nominal DC Voltage | Rated up to 1 500 V DC (EN 50618 requirement) |
| Conductor | Flexible tinned copper (Class 5) for excellent conductivity and corrosion resistance |
| Insulation & Sheath | Cross‑linked XLPE, halogen‑free, flame‑retardant, UV and weather-resistant |
| Temperature Range | −40 °C to +90 °C operational ambient temperature |
