Description

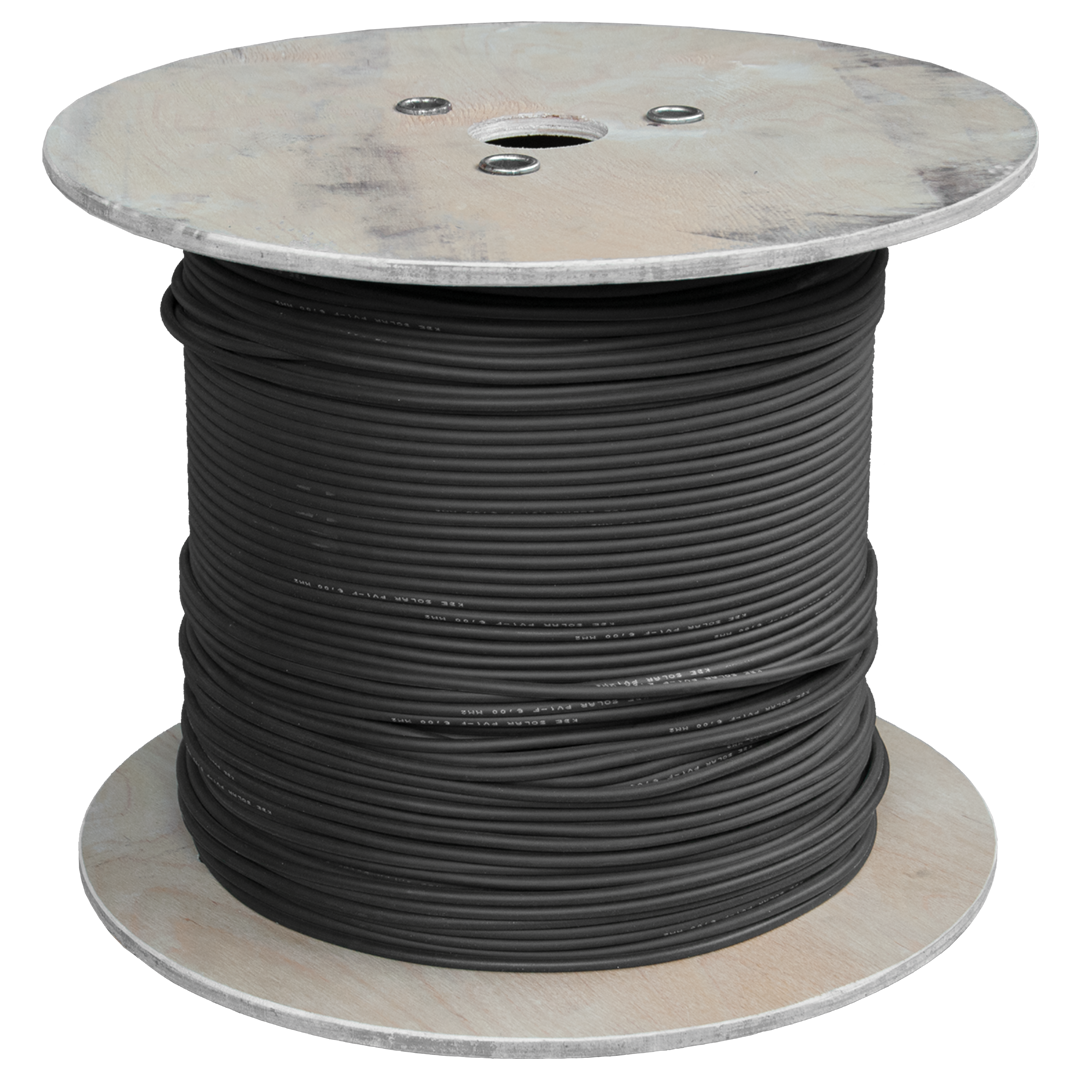

xKBE Solar DB cable, 16mm², is a high-quality photovoltaic cable designed for long-lasting outdoor use in solar power systems. Manufactured to EN50618 standards, this single-core cable offers robust performance, halogen-free safety, and exceptional UV and weather resistance, making it ideal for DC connections between PV panels and inverters.
Key Features
- Triple-certified to EN50618 for photovoltaic applications
- Halogen-free and flame-retardant for improved safety
- UV-, ozone-, and weather-resistant for outdoor use
- Electron beam cross-linked insulation and sheathing
Specifications
x| Cable Standard | EN50618 |
| Conductor Cross-Section | 16 mm² |
| Conductor Material | Copper (Cu) |
| Insulation Material | Cross-linked Polyethylene (XLPE) or equivalent |
| Sheath Material | UV-resistant and weather-resistant compounds |
| Voltage Rating | 1.5 kV DC (1500 V DC) |
| Temperature Range | -40°C to +90°C (operating temperature) |
| UV Resistance | Certified for UV exposure |
| Flame Retardancy | Compliance with IEC 60332-1 standards |
| Certifications | TÜV, IEC, and other relevant approvals |
