Description

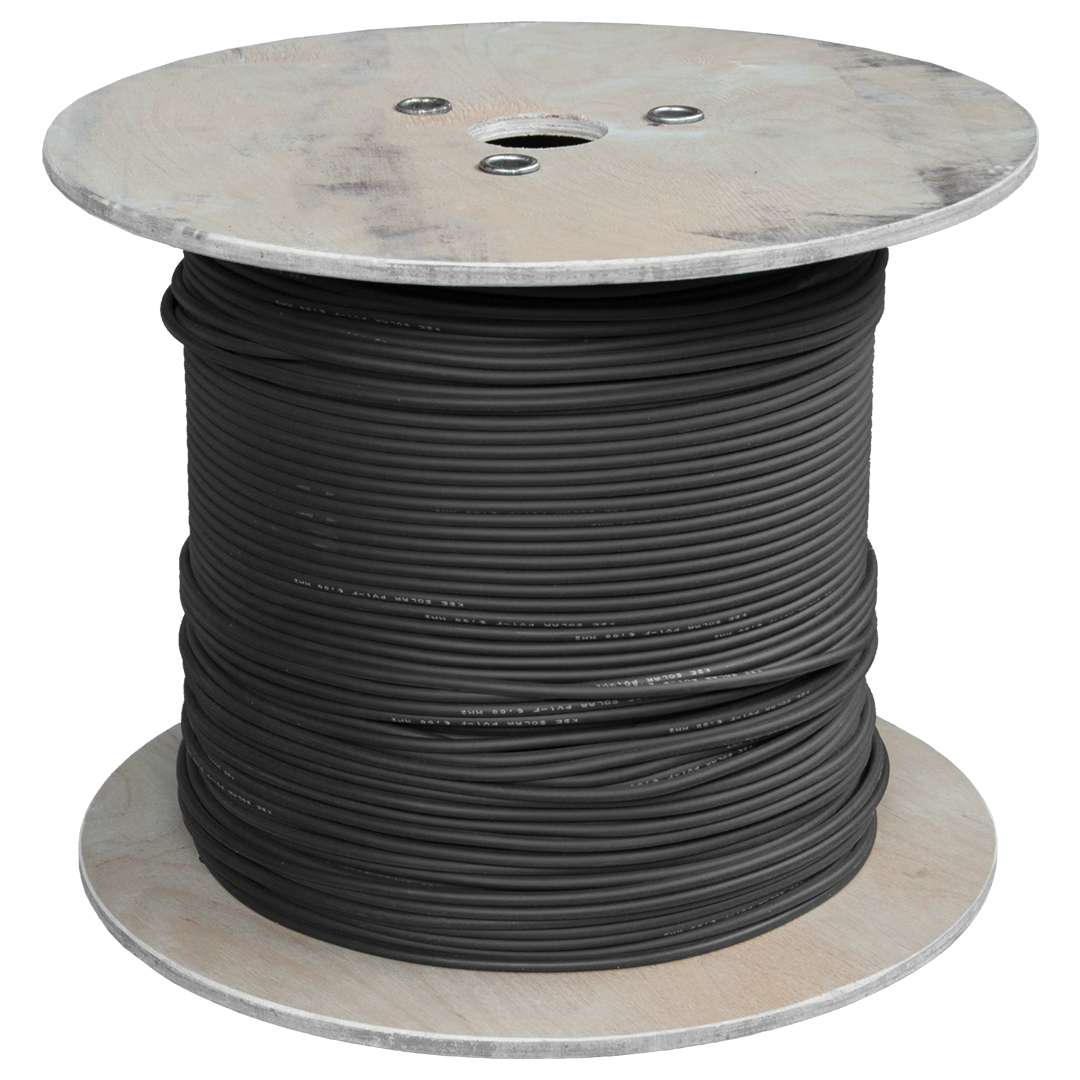

xHigh-quality 25mm² single-core solar DC cable designed for photovoltaic (PV) systems. Ideal for DC connections between modules, inverters, and junction boxes. Certified to the EN 50618 (H1Z2Z2-K) standard for robust construction and long-lasting performance.
Key Features:
- Certified to EN 50618 (H1Z2Z2-K) for PV applications.
- Supports high DC voltages up to ~1500 VDC.
- Black LSZH (Low Smoke Zero Halogen) insulation for safety and outdoor durability.
- Flexible tinned copper conductor for excellent conductivity and corrosion resistance.
- UV- and weather-resistant; suitable for outdoor installation.
- Operating temperature range: -40°C to +90°C.
Specifications
x| Certification | EN 50618 (H1Z2Z2-K) for PV applications |
| Voltage Rating | Supports high DC voltages up to 1500 VDC |
| Insulation Type | LSZH (Low Smoke Zero Halogen), UV- and weather-resistant |
| Conductor | Flexible tinned copper for corrosion resistance |
| Operating Temperature | -40°C to +90°C |
