Description

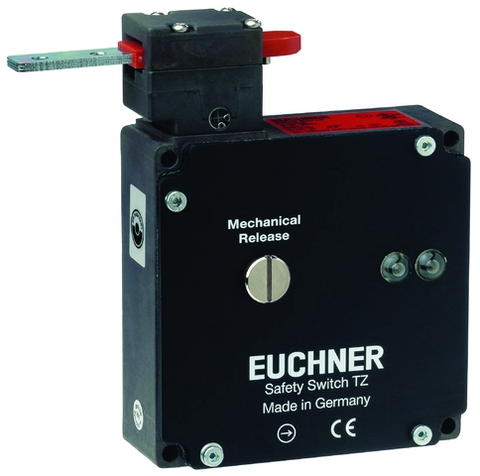

xThis is a solenoid-interlock safety switch used to guard access to hazardous areas of machinery, holding a guard door closed until the machine has reached a safe condition. Rated at 250V with a 10W solenoid consumption, it is typically wired into a safety circuit that releases the interlock once the associated process or motion has stopped. It is used on panels and machine guards where access must be electrically controlled rather than left to a simple mechanical latch.
Specifications
x| Operating Voltage | 24 V AC/DC -15%, +10% |
| Power Consumption | 10 W |
| Connection Cross Section | 0.34 ... 1.5 mm² |
| Rated Insulation Voltage Ui | 250 V |
| Rated Impulse Withstand Voltage Uimp | 2.5 kV |
| Short Circuit Protection | 4A gG |
| Switching Voltage | min. at 10 mA 12 V |
| Thermal Rated Current Ith | 4 A |
| Approach Speed | max. 20 m/min |
| Number of Door Position NO Contacts | 1 |
| Number of Guard Lock Monitoring NO Contacts | 2 |
| Extraction Force | 30 N |
| Actuation Frequency | max. 1200 1/h |
| Actuating Force | 35 N |
| Lid Color | black |
| Insertion Depth | 52 mm |
| Mechanical Life | 1 x 10⁶ |
| Retention Force | 10 N |
| Switching Principle | Slow-action switching contact |
| Degree of Protection | IP67 |
| Ambient Temperature | -25 ... +80 °C |
| Material Housing | Anodized die-cast alloy |
| Material Contact | Silver alloy, gold flashed |
| Locking Force Fmax | 2000 N |
| Locking Force FZh | 1500 N |
| Guard Locking Principle | Open-circuit current principle |
