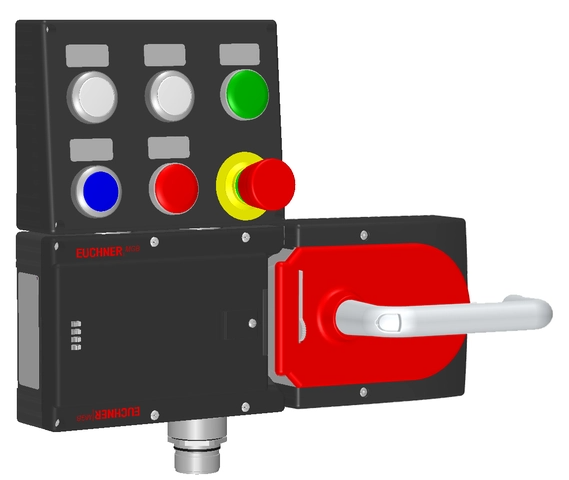

Euchner MGB-L2HC-ARA-R Locking set, incl label carrier Part number 112531

The MGB-L2HC-ARA-R is a locking set from Euchner's MGB modular safety gate box range, supplied with a label carrier, used to secure hinged or sliding guards on machinery until safe conditions are met. It is rated IP65 and combines a die-cast zinc, fibre glass, nickel-plated, reinforced plastic and stainless steel housing construction, suiting environments where durable guard locking is required. Connection is made via six RC26 plug connectors, with a 24 VDC supply and switching arrangements covering both control and indicator circuits (24 VDC) and emergency stop functions (5-24 V). The unit carries cULus, FCC and IC compliance, making it suitable for machine safety applications across multiple regulatory regions.

Key specifications

• IP rating: IP65
• Connection: Plug connector RC26 (x6)
